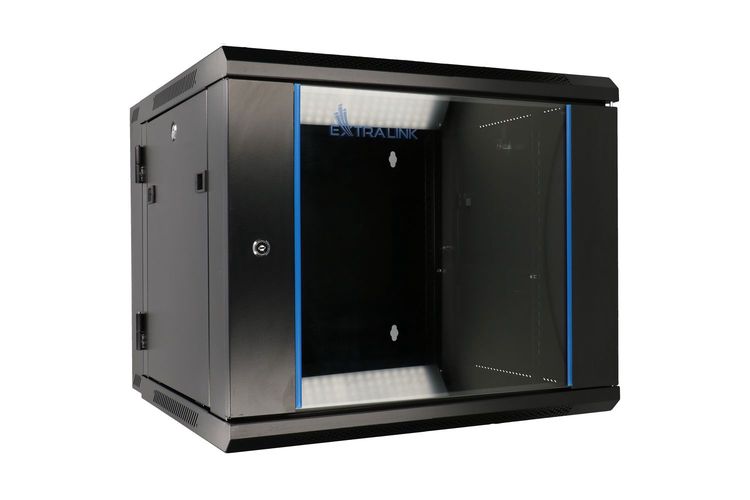

EXTRALINK rack cabinet AZH, 9U, 600x600, two-sectional
The Extralink cabinet is designed for wall mounting in offices, network server rooms and control rooms of CCTV installations. The external walls are made of cold-rolled steel sheet, while the front door has a tempered glass pane that can be opened to the left or right. Two-section construction facilitates access to the installed components from the back.
Clearly marked height
Vertical rails have a corresponding height designation, which is 9U (unit). The total height of the cabinet is 50.5 cm.
Easy removal of side walls
Snap fasteners on the side walls allow for their disassembly. Locks and keys are included.
Fan-installed ceiling
On the ceiling of the cabinet there are 2 places to install fans for better cooling of the devices, as well as 2 additional passages for pulling out cables.
Cabinet construction - drawing
Features
Features
- Standard 19'' mounting, welded frame, reliable design
- The frame construction is prepared for self-assembly, which facilitates transport and saves shipping costs
- Standing/Wall Mounting
- Easy installation (patent)
- Removable side panels
- Holes for cable entry, both on the top cover and on the bottom panel
- Tempered glass front door, swivel angle exceeding 180 degrees
- Two-sectional construction
| Cabinet hight | 9U |
| Back door construction | Metal |
| Back door key lock | No |
| Colour | Black |
| Cooling type | Passive |
| Depth | 750 |
| Frame type | Closed |
| Front door construction | Glass/Steel |
| Front door key lock | Yes |
| Height | 605 |
| Key lock | Yes |
| Material | Metal |
| Maximum weight capacity | 60 |
| Nuts included | Yes |
| Product colour | Black |
| Rack capacity | 9U |
| Rack rails | Yes |
| Removable back door | No |
| Removable front door | Yes |
| Removable side panels | Yes |
| Screws included | Yes |
| Side panel construction | Metal |
| Side panel key lock | Yes |
| Side panels included | Yes |
| Size (imperial) | 48.3 |
| Soundproof | No |
| Type | Wall mounted rack |
| Type of doors | Glazed |
| Width | 600mm |
| Width | 600 |
