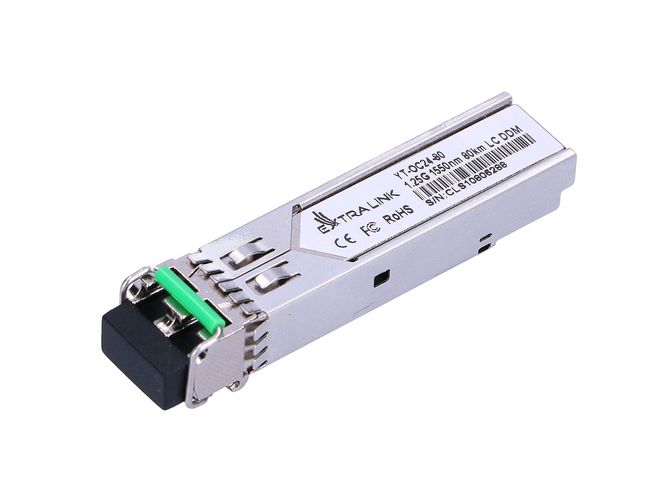

Extralink SFP 1.25G | SFP Module | 1,25Gbps, LC/UPC, 1550nm, 80km, single mode, DOM, EXTRALINK
Toote kood: EX.8024
Bränd
Rohkem sarnaseid tooteid
Kättetoimetamise tähtajad
2024-06-12 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.
3,50 €
Tarnija toote kirjeldus
Powerful Extralink module SFP 1.25G 1550NM 80KM SM DDM LC DX
The Extralink SFP 1.25G 1550NM is a powerful, economical SFP optical insert that supports data transmission at 1.25 Gb/s, with a range to 80 km using the SMF. The single-mode SFP module is equipped with PIN photodetector and DFB laser using 1550 nm wavelength. The Extralink SFP 1.25G 1550NM has a doublex LC output connector, complies with SFP MSA and SFF-8472 standards and the RoHS directive.
Special features
Special features
- A data rate of 1.25 Gb/s
- DFB 1550nm laser and PIN photodetector for transmission over a distance of 80 km
- Compatible with SFP MSA and SFF-8472 with duplex LC socket
- Digital diagnostic monitoring - internal or external calibration
- Compatibility with RoHS Directive
- Single power supply +3.3 V
| Output connector | LC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | Over 20km |
| Certification | FCC |
| Fiber type | SM (Single-Mode) |
| Input voltage | 3.13 - 3.47 |
| Interface type | SFP |
| Maximum current | 0.3 |
| Maximum data transfer rate | 1250 |
| Maximum transfer distance | 80000 |
| Number of products included | 1 |
| Operating relative humidity (H-H) | 5 - 85 |
| Operating temperature (T-T) | 0 - 70 |
| Rx wavelength (max) | 1580 |
| Rx wavelength (min) | 1260 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Storage temperature (T-T) | -40 - 85 |
| Sustainability certificates | CE, RoHS |
| Tx wavelength (max) | 1580 |
| Tx wavelength (min) | 1480 |
| Type of SFP duplex | Physical (two fibers) |
| Wavelength | 1550 nm |
| Wavelength | 1550 |
Tarnija toote parameetrid
Product code
EX.8024
Brand
EXTRALINK
Supplier's product code
EX.8024
Product ID
U-3955244
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
