Kauba kirjeldus

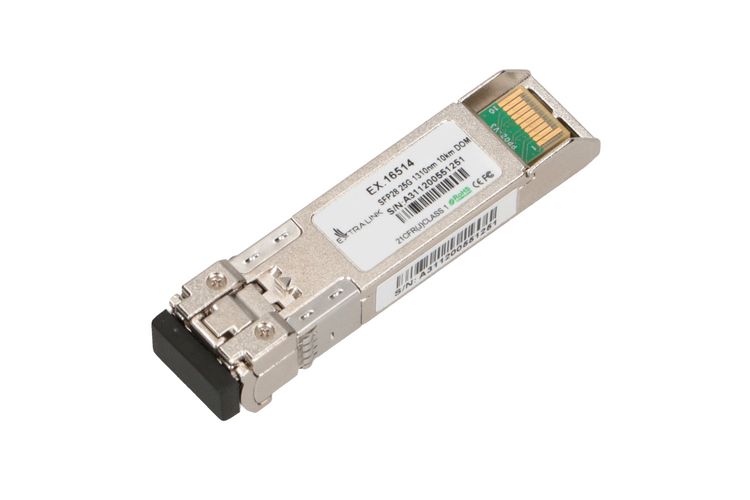

Extralink SFP28 25G | SFP28 Module | 25Gbps, LC/UPC Duplex, 1310nm, 10km, single mode, DOM, EXTRALINK
Tehnilised andmed
Tarnija toote kirjeldus
Extralink SFP28 25G single-mode optical module
Extralink SFP28 25G is an IEEE 802.3z single-mode optical module with a data rate of 10 Gbps and a range of 10 km. The module works with two multimode fibers (duplex transmission). The SFP fiber optic insert features very low power consumption (no more than 1 W) and an operating temperature range of 0°C to 70°C.
Product features
- Supports transmission rates up to 25.78 G/sec.
- Compatible with IEEE 802.3cc
- Compatible with SFF-8402 for SFP28 solution
- Digital diagnostic monitor interface with SFF-8472
- Supported during SFP operation
- 1310 nm DFB transmitter
- High transmission margin
- Low power consumption <1.5 W
- Single 3.3 V power supply
- Housing temperature from 0°C to 70°C
Pin definitions and functions
Typowy układ interfejsu
| Output connector | LC |
| SFP module - port speed | 25 Gbps |
| Transmission distance | 4-20km |
| Certification | FCC |
| Fiber optic connector | LC |
| Fiber type | SM (Single-Mode) |
| Interface type | SFP28 |
| Maximum data transfer rate | 25000 |
| Maximum operating temperature | 70 |
| Maximum transfer distance | 10000 |
| Networking standards | IEEE 802.3cc |
| Number of products included | 1 |
| Power consumption (typical) | 1.5 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Sustainability certificates | CE, RoHS |
| Type of SFP duplex | Physical (two fibers) |
| Wavelength | 1310 nm |
| Wavelength | 1310 |
Tarnija toote parameetrid
Brand
EXTRALINK
Supplier's product code
EX.16514
Product ID
U-4050105
Product code
EX.16514
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
