Kauba kirjeldus
Tehnilised andmed
Tarnija toote kirjeldus

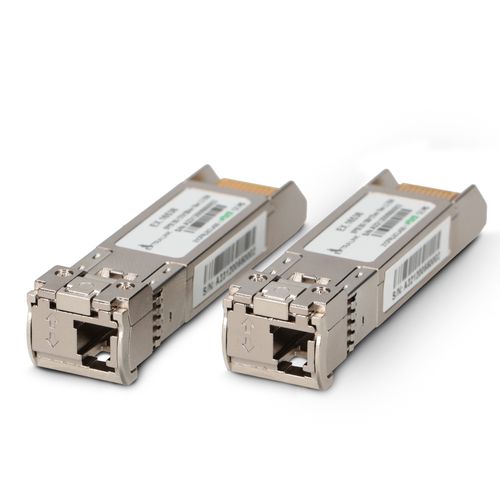

Cost-effective SFP28 25G module
The Extralink SFP28 25G is a cost-effective module that complies with the Gigabit Ethernet and 1000-BASE-T standards as defined by the IEEE 802.3cc standard and supports bit rates up to 25.78 Gbps. It is designed for use with Category 5 Ethernet cable over distances of up to 10 km. The transceiver designs are optimized for high performance and cost-effectiveness to provide customers with the best solution for single-lane 25 Gbps optical links. The SFP28 insert features ultra-low power consumption of no more than 1.5 W and an operating temperature range of 0°C to 70°C.
Product Features
- Supports bit rates up to 25.78 Gbps
- Compliant with IEEE 802.3cc
- Digital diagnostic monitor interface with SFF-8472
- 1310 nm DFB transmitter
- 10 km SMF connections
- High transmission margin
- Low power consumption <1.5 W
- Single 3.3 V power source
- Operating temperature range from 0°C to 70°C
Functional diagram
Definicja pinów i funkcje
Output connector LC SFP module - port speed 25 Gbps Transmission distance 4-20km Ethernet LAN No Fiber optic connector LC Fiber type SM (Single-Mode) Input voltage 3.3 Interface type SFP28 Maximum data transfer rate 25780 Maximum transfer distance 10000 Networking standards IEEE 802.3cc Power consumption (typical) 1.5 Power over Ethernet (PoE) No SFP transceiver standard CWDM SFP transceiver type Fiber optic Single-mode fiber (SMF) supported Yes Tx wavelength (max) 1330 Tx wavelength (min) 1270 Type of SFP duplex Wavy (WDM) Wavelength 1270/1330 nm Wavelength 1310
