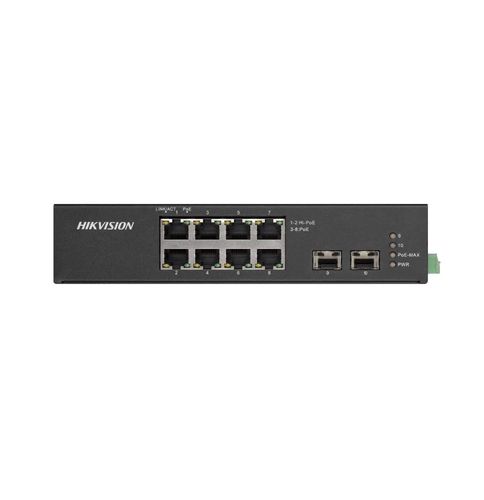

Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-07-14 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
Hikvision 10 Port 8 PoE Port Industrial Switch DS-3T0510HP-E/HS
Tehnilised andmed
Tarnija toote kirjeldus
- 6 × gigabit PoE RJ45 ports, 2 × gigabit Hi-PoE RJ45 ports and 2 × gigabit SFP fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wire-speed forwarding.
- Wider temperature (-30 to 65 °C) design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
- Network Parameters
- Ports6 × Gigabit PoE ports, 2 × Gigabit Hi-PoE RJ45 ports, and 2 × Gigabit fiber optical ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working ModeStandard mode (default), Extend mode, Isolation mode, PoE watchdog mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
- Forwarding ModeStore-and-forward switching
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Internal Cache1.5 Mbits
- Packet Forwarding Rate14.88 Mpps
- Ports for Long-Distance TransmissionPorts 7 and 8
- PoE Power Supply
- PoE Standard
Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 3 to 8: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin
Ports 1 to 2 and 7 to 8: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Ports 3 to 6: End-span: 1/2(-), 3/6(+)
- PoE PortPorts 3 to 8
- Max. Port Power
Ports 1 and 2: 90 W
Ports 3 to 8: 30 W
- PoE Power Budget110 W
- Dialing Function
- Long RangePorts 7 and 8: up to 300 m.
- Port IsolationPorts 1 to 8: port isolation mode to improve network security.
- PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
- General
- Dimensions (W × H × D)197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)
- ShellMetal material, fan-free design
- Gross Weight1.11 kg (2.45 lb)
- Net Weight0.585 kg (1.29 lb)
- Operating Temperature-30 °C to 65 °C (-22 °F to 149°F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Storage Humidity5% to 95% (no condensation)
- Power Consumption in Idle< 10 W
- Power Supply48 to 57 VDC, 2.5 A Max.
- Max. Power Consumption120 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
