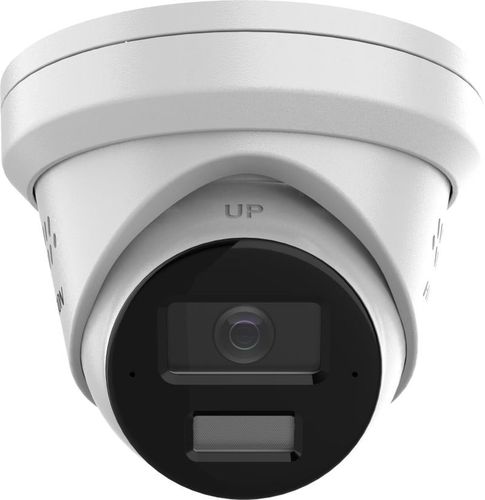

Hikvision dome DS-2CD2383G2-LI2U F2.8 (white, 8 MP, 30 m IR+LED, AcuSense)
Tootekood: KIP2CD2383G2LI2U28
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-12-04 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
Hikvision dome DS-2CD2383G2-LI2U F2.8 (white, 8 MP, 30 m IR+LED, AcuSense)
Tehnilised andmed
Tarnija toote kirjeldus
- High quality imaging with 8 MP resolution
- Technology: AcuSense
- Smart Hybrid Light: Integrates IR and White lights, 4 supplemental lighting modes
- -2U: Built-in arrayed dual-microphone for real-time high quality audio security
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
- SafetyCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
- Audio
- Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering-2U: Yes
- Camera
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Day & NightIR cut filter
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- DORI
- DORI2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m
- Deep Learning Function
- Perimeter Protection Line crossing, intrusionSupport alarm triggering by specified target types (human and vehicle)
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
- Smart EventFace detection
- General
- DimensionØ127.3 mm × 96.3 mm (Ø5.0" × 3.8")
- General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- MaterialMetal
- Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")
- Power12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 9.5 W
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- WeightApprox. 515 g (1.1 lb.)
- With Package WeightApprox. 755 g (1.7 lb.)
- Illuminator
- IR Wavelength850 nm
- Smart Supplement LightYes
- Supplement Light RangeUp to 30 m
- Supplement Light TypeIR,White Light
- Image
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image Parameters SwitchYes
- Image SettingsRotate mode
- Privacy Mask8 programmable polygon privacy masks
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)120 dB
- Interface
- Audio Built-in Microphone: -2U: Arrayed dual-microphone
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset KeyYes
- Lens
- ApertureF1.6
- Depth of Field2.8 mm: 1.7 m to ∞4 mm: 2.6 m to ∞
- Focal Length & FOV2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°
- Iris TypeFixed
- Lens MountM12
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Network
- APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users3 user levels: administrator, operator, and user
- Web BrowserPlug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Video
- Bit Rate ControlCBR,VBR
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Main Stream50 Hz:20 fps (3840 × 2160)25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:20 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Target CroppingYes
- Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 16 Mbps
- Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
Tarnija toote parameetrid
Product code
KIP2CD2383G2LI2U28
Brand
Hikvision
Category
Dome Camera
Supplier's product code
KIP2CD2383G2LI2U28
Product ID
U-4864452
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
