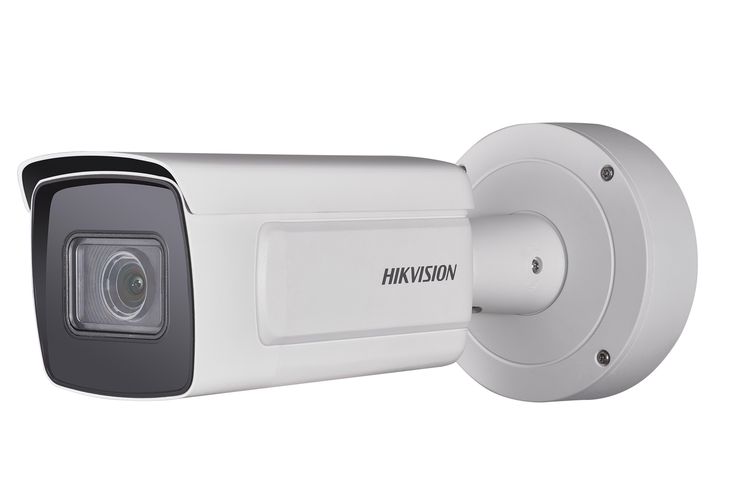

IP camera bullet Hikvision DS-2CD5A46G0-IZS F2.8-12
Tootekood: KIPDS2CD5A46G0IZS
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-09-12 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
IP camera bullet Hikvision DS-2CD5A46G0-IZS F2.8-12
Tehnilised andmed
Tarnija toote kirjeldus
- 4MP IP bullet camera
- DarkFighter technology
- 6 behavior analyses, 2 exception detections, and face detection
- 5 streams and up to 5 custom streams
- Lens - 2.8 to 12 mm motorized
- Video Compression H.265, H.265+, H.264, H.264+
- Image Sensor 1/1.8”Progressive Scan CMOS
- Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON)
- IR Range Up to 50 m
- Protection IK10
- Alarm 2 inputs/2 outputs
- On-board Storage up to 256 GB
- Operating Conditions -30 °C to +65°C
| Image Sensor | 1/1.8ʺ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| WDR | 140 dB |
| Angle Adjustment | Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens Type | Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional |
| Aperture | 2.8 to 12 mm: F1.2 to 2.5 |
| Focus | Auto, semi auto, manual |
| Auto-iris | P-iris |
| FOV | Horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45° |
| Lens Mount | Integrated |
| IR Range | Up to 50 m |
| Wavelength | 850 nm |
| Max. Resolution | 2560 × 1440 |
| Video Stream | 5 defined streams and up to 5 custom stream |
| Main Stream | 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) |
| Custom Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream support |
| H.265 Type | Main Profile |
| H.265+ | Main stream support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Smart Event | Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Statistics | Counting |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email |
| Region of Interest | Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS, distortion correction |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | Yes |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| SNR | ≥52dB |
| Network Storage | microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Smooth Streaming | Yes |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1 |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+ |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A) |
| Video Out | 1Vp-p composite output (75 Ω/CVBS), only for adjustment |
| Interface Style | Connector panel |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Firmware Version | 5.6.0 |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Embedded Open Platform | Yes. The camera supports installation and running up to 4 extra applications. |
| General Function | Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening |
| Reset | Reset via reset button on camera body, web browser and client software |
| Startup and Operating Conditions | -30 °C to 65 °C Humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 65 °C Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 20%, two-core terminal block; reverse polarity protection, PoE (802.3at, class 4) |
| Power Consumption and Current | 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W |
| Material | Metal |
| Dimensions | Camera: Φ144 × 347 mm (Φ5.7ʺ × 13.7ʺ) With package: 405 × 190 × 180 mm (15.9ʺ × 7.5ʺ × 7.1ʺ) |
| Weight | Camera: approx. 2.45 kg With package: approx. 2.7 kg |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| Protection | Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
Tarnija toote parameetrid
Product code
KIPDS2CD5A46G0IZS
Category
Bullet Came
Brand
Hikvision
Supplier's product code
KIPDS2CD5A46G0IZS
Product ID
U-2528431
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
