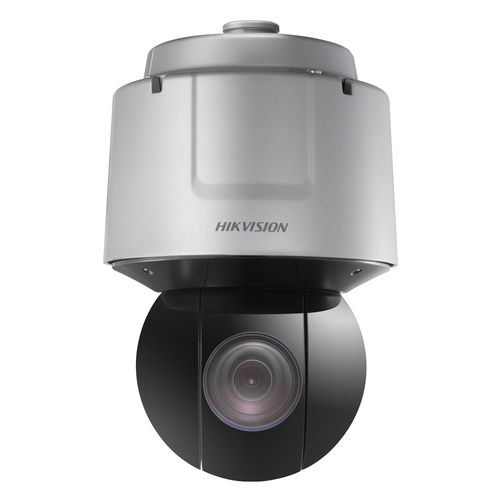

IP speed dome camera Hikvision DS-2DF6A225X-AEL (x25, DarkFighter)
Tootekood: KIPDS2DF6A225XAEL
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-12-04 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
IP speed dome camera Hikvision DS-2DF6A225X-AEL (x25, DarkFighter)
Tehnilised andmed
Tarnija toote kirjeldus
- IP camera
- Model: DS-2DF6A225X-AEL
- Manufacturer: Hikvision
- Style: SPEED DOME
- Zoom: x25 ZOOM
- Technology: DARKFIGHTER
- Sensor: 1/1.8'' CMOS
- Lens: 5.9-147.5mm (59.8°-3.3°)
- IR illumination: Without IR
- Noise reduction: 3D DNA
- Wide Dynamic Range (WDR): 120dB
- Encoding technology: H.265+
- Resolution: 2MP
- Protection class: IK10, IP67
- Power supply: 24V, High PoE
- Camera
- Image Sensor1/1.8" progressive scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
- Shutter Speed1/1 s to 1/30,000 s
- Day & NightIR cut filter
- Zoom25x optical, 16x digital
- Slow ShutterYes
- DORI
Detect (25px/m): 2034.5 m
Observe (63px/m): 807.3 m
Recognize (125px/m): 406.9 m
Identify (250px/m): 203.4 m
- Lens
- Focal Length5.9 mm to 147.5 mm
- FOV
Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele)
- FocusSemi-auto, manual, auto, rapid focus
- ApertureMax. F1.5
- Zoom SpeedApprox. 4.8 s
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-20° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
- Proportional PanYes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-off MemoryYes
- Video
- Main Stream
50 Hz: 25 fps (1920×1080, 1280×960, 1280×720)
60 Hz: 24 fps (1920×1080, 1280×960, 1280×720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 TypeBaseline profile, main profile, high profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIOpen-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
- Smooth StreamingYes
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Network StorageNAS (NFS, SMB/ CIFS), ANR
- ClientiVMS-4200, Hik-Connect, HikCentral
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Day/Night SwitchDay, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)140 dB WDR
- SNR≥ 52 dB
- DefogOptical defog
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Alarm7 alarm inputs, 2 alarm outputs
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic EventMotion detection, video tampering alarm, alarm input and output, exception
- Smart EventIntrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
- LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Smart TrackingManual tracking, auto-tracking
- Deep Learning Function
- Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- General
- Power24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
- Dimension⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14")
- WeightApprox. 6 kg (13.23 lb.)
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- General FunctionMirror, password protection, watermark, IP address filter
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionLightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
Tarnija toote parameetrid
Product code
KIPDS2DF6A225XAEL
Brand
Hikvision
Supplier's product code
KIPDS2DF6A225XAEL
Category
PTZ Cameras
Product ID
U-4864458
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
