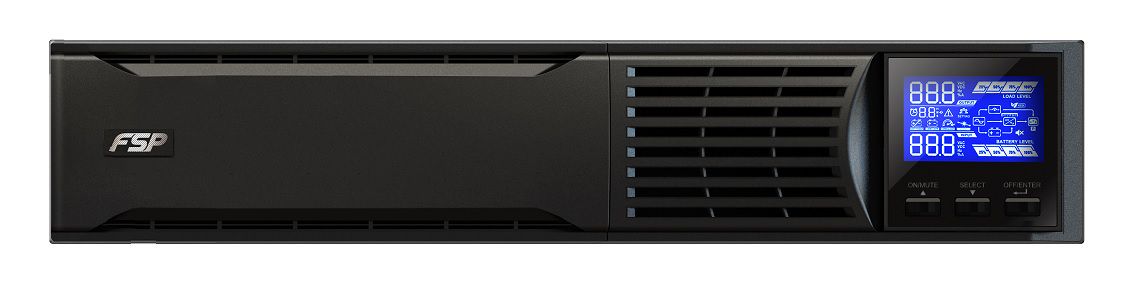

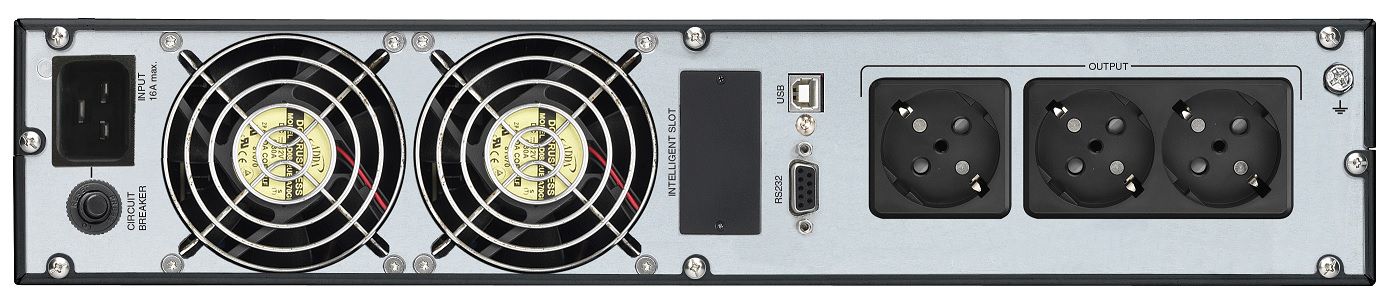

Katkematu toiteplokk CHAMP 3000VA 2400W, võrgus, hammas, FSP
Katkematu toiteplokk CHAMP 3000VA 2400W, võrgus, hammas, FSP
| Kaal | 29.7 kg. |
| Garantiiaeg (kuud) | 24 |
| Bränd | FSP |
Tarne LEMONA electronics kontorisse 1-5 tööpäeva
Tarne kulleriga koju 1-5 tööpäeva
Tarne pakiautomaati 1-4 tööpäeva
Kättetoimetamise tähtajad
Kontorist kättesaamine
Kontorist kättesaamine Tasuta
Kui teie tellimus on kogumiseks valmis, teavitame teid sellest SMS-i ja e-posti teel.
Kogus laos
 1 tk | Keskladu |
 Ei ole saadaval | Tallinna kontor |
Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)
Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)
Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)
3,50 €
Kauba kirjeldus
| Kaal | 29.7 kg. |
| Garantiiaeg (kuud) | 24 |
| Bränd | FSP |
Features
- True double-conversion
- Microprocessor control optimizes reliability
- Input power factor correction
- Output power factor 0.9
- Wide input voltage (110V - 300V)
- Converter mode available
- ECO mode for energy saving(Only available for 1-3KVA
- Adjustable battery string numbers only available for 6K/10K modelz
- Adjustable charging current via LCD or software (1A~6A)
- Emergency power off function (EPO) only available for 6K/10K models
- Generator compatible
- Smart SNMP works well with either USB or RS-233 together
- Comprehensive LCD display allows easy monitoring and access of UPS status
Technical data
| MODEL | Champ RM 1K(L) | Champ RM 2K(L) | Champ RM 3K(L) |
| PHASE | Single phase with ground | ||
| CAPACITY | 1000VA / 900W | 2000VA / 1800W | 3000VA / 2700W |
| PARALLEL CAPABILITY | NO | ||
| INPUT | |||
| Nominal Voltage | 110V/115V/120V/127V or 208V/220V/230V/240V | ||
| Voltage Range | 60-145Vac or 110-300 Vac ±3% @ 50% load; 90-145Vac or 180-300 Vac ±3% @ 100% load | ||
| Frequency Range | 40 ~ 70 Hz | ||
| Power Factor | ≧ 0.99 @ nominal voltage (100% load) | ||
| OUTPUT | |||
| Output Voltage | 110V/115V/120V/127V or 208V/220V/230V/240V | ||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||
| Frequency Range (Synchronized Range) | 47~53Hz or 57~63Hz | ||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz | ||
| Current Crest Ratio | 3:1 | ||
| Harmonic Distortion | ≦ 3 % THD (Linear Load) ≦ 6 % THD (Non-linear Load) | ||
| Transfer time AC mode to Battery mode | zero | ||
| Transfer time Inverter to Bypass | 4ms (typical) | ||
| Waveform (Batt. Mode) | Pure Sine Wave | ||
| Overload AC Mode | - | ||
| Overload Battery Mode | - | ||
| EFFICIENCY | |||
| AC Mode | 88.00% | 89.00% | 90.00% |
| ECO Mode | - | - | - |
| Battery Mode | 83.00% | 87.00% | 88.00% |
| BATTERY | |||
|
| Standard model | ||
| Battery Type | 12V / 9Ah | 12V / 9Ah | 12V / 9Ah |
| Numbers | 2 | 4 | 6 |
| Typical Recharge Time | 4 hours recover to 90% capacity | ||
| Charging Current (max.) | 1.0A | ||
| Charging Voltage | 27,4VDC ± 1% | 54,7VDC ± 1% | 82,1VDC ± 1% |
|
| Long-run model | ||
| Battery Type | Depending on the capacity of external batteries | ||
| Numbers in string | 2; 3 | 4; 6; 8 | 6; 8 |
| Charging Current (max.) | 1A/2A/4A/6A (Adjustable) | ||
| Charging Voltage | 27,4VDC ± 1%; 41,0VDC ± 1% | 54,7VDC ± 1%; 82,1VDC ± 1%; 109,4VDC ± 1% | 82,1VDC ± 1%; 109,4VDC ± 1% |
| INDICATORS | |||
| LCD Panel | Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault conditions | ||
| ALARM | |||
| Battery mode | Sounding every 4 seconds | ||
| Low battery | Sounding every second | ||
| Overload | Sounding twice every second | ||
| Fault | Continuosly sounding | ||
| PHYSICAL | |||
|
| Standard model | ||
| Dimension, D X W X H (mm) | 310 x 438 x 88 mm | 410 x 438 x 88 mm | 630 x 438 x 88 mm |
| Net Weight (kgs) | 12Kg | 19Kg | 29,3Kg |
|
| Long-run model* (L) | ||
| Dimension, D X W X H (mm) | 310 x 438 x 88 mm | 410 x 438 x 88 mm | 410 x 438 x 88 mm |
| Net Weight (kgs) | 9Kg | 12Kg | 14,2Kg |
| ENVIRONMENT | |||
| Operation Temperture | 0-40°C | ||
| Operation Humidity | 20 - 90 % and non-condersing | ||
| Noise Level | Less than 50dB @ 1 meter | ||
| MANAGEMENT | |||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux and MAC | ||
| Optional SNMP | Power management from SNMP manager and web browser | ||
| * 1K-3K: Derate to 80% of capacity in Frequency converter mode or when the output voltage is adjusted to 208Vac. | |||
| * Long-run model power factor: 0.8 | |||
| Product specifications are subject to change without further notice | |||
Kasulik informatsioon
Tehnilised andmed
| Laokood | 324908 |
| Kaal | 29.7 kg. |
| Garantiiaeg (kuud) | 24 |
| Sisendpinge vahelduvvool alates, V | 110 |
| Väljundpinge vahelduvvool alates, V | 110 |
| Kõrgus, mm | 88 |
| Jõudu, W | 2400 |
| Bränd | FSP |
| Laius, mm | 438 |
| Sisendpinge vahelduvvooluga, V | 240 |
| Väljundpinge vahelduvvooluni, V | 240 |
| NomNr | PPF27A1102 |
| Sügavus, mm | 630 |
| Jõudu, W | 2400 |
