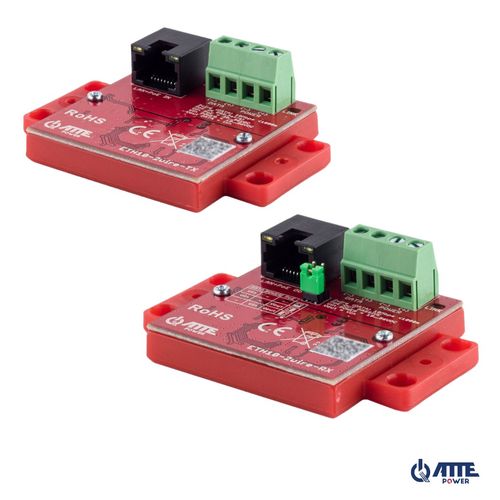

LAN transmission set ATTE ETH10-2WIRE-SET
Tootekood: ATTEETH102WIRESET
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-08-15 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
LAN transmission set ATTE ETH10-2WIRE-SET
Tehnilised andmed
Tarnija toote kirjeldus
- Type: LAN transmission kit
- Model: ATTE ETH10-2WIRE-SET
- PoE ports: 2 x PoE
- PoE input/output: LAN + PoE
- LAN speed: 100 Mbps
- Voltage: 56 V
- Power consumption: 1.35 W per channel
- Overload protection: 0.6 A
- Transmission range: up to 1000 m over 2 single wires
- IP rating: IP20
- Operating temperature: -25...+65 °C
- Specifications
- Total number of ports:2 PoE Ports, 2 Screw terminals
- PoE IN:LAN + PoE IN
- PoE OUT:LAN + PoE OUT
- LAN 10/100Mbps ports:LAN + PoE IN, LAN + PoE OUT
- Input Voltage:Vin PoE - 30 ... 56 V, Vin Power - 10 ... 56 V
- Output PoE Voltage:VoutDATA = Vin, Vout = Vin
- Power consumption:1,35 W (full channel)
- Output power control:Jumpers - configuration in the manual and on the device
- Surge protection:LAN and DATA
- Overload protection:LAN + PoE IN - 0.6A overload protection
- Length of 2WIRE cable:< 1000m - 2 single twisted wires
- 2 wire Data indication:LED LINK (green) - link and data transmission in 2wire track
- PoE indication:LED RJ45 port (yellow) - presence of PoE
- Transmission indication:LED RJ45 port (green) - link and data transmission in LAN
- Temperature range:-25°C ... +65°C
- Dimensions:51(73) x 51 x 22 mm
- Weight:0,05 kg
- IP rating:IP20
- Housing construction:Uniwersal mounting base
- Assembly:Mounting studs, TH35 rail with additional bracket, can be screwed to flat surface
- EAN code:5902143691334
- PKWiU code:26.30.23.0
- HS code:8517 62
- CN2020 code:8517 62 00
Tarnija toote parameetrid
Product code
ATTEETH102WIRESET
Category
Rang
Brand
Hikvision
Supplier's product code
ATTEETH102WIRESET
Product ID
U-4680228
