LED allvalgusti QUANTUM 230Vac, 7W 700lm, 4000K, 60°, Bridgelux LED, LED LINE
Hinnapiirid
| Kogus | Hind KM-ga (tk) |
|---|---|
1+ -83% | €26.00€4.45 |
| B2B |
Tarne LEMONA electronics kontorisse 1-5 tööpäeva
 Ei ole saadaval | Keskladu |
 1 tk | Tallinna kontor |
Tarne kulleriga koju 1-5 tööpäeva
Tarne pakiautomaati 1-4 tööpäeva
Kättetoimetamise tähtajad
Kontorist kättesaamine
Kontorist kättesaamine Tasuta
Kui teie tellimus on kogumiseks valmis, teavitame teid sellest SMS-i ja e-posti teel.
Kogus laos
| Ei ole saadaval | Keskladu |
| 1 tk | Tallinna kontor |
Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)
Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)
Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)
3,50 €
Kauba kirjeldus
Product description
- The product stands out with its modern design and simple, concealed mounting. Its main advantages are simplicity, elegance and innovativeness.
- The product’s housing is made of Aluminum, and its outer lens is made of polycarbonate, which entails good mechanical strength.
- The cutting-edge FLICKER FREE technology ensures no light flickering that is harmful to the eyes. The diode type used in the product is COB Bridgelux. Luminous efficiency: 100 lm/W.
- The product operates in temperatures ranging from temperature -5 /+40 °C. It’s suited for interior applications.
Technical data:
| Supply voltage range and voltage type | AC 220V - 240V 50/60 Hz |
| Wattage | 7W |
| Luminous flux | 700lm |
| Correlated color temperature | 4000K |
| Beam angle | 60° |
| Flicker Free | YES |
| Luminous efficacy | 100lm/W |
| Color rendering index Ra | 85 |
| UGR rating | UGR<19 |
| Color consistency in McAdam ellipses | ≤3 |
| Stroboscopic effect metric SVM | 0.4 |
| Energy class | A+ / F |
| Lamp's warm-up time to 60% | 1s |
| LED quantity | 1 |
| LED type | COB |
| Led size | 158mm x 158mm |
| LED manufacturer | Bridgelux |
| Dimmer compatibility | NO |
| Driver Brand | Lifud |
| Controller output voltage range | 25V - 42V DC |
| Output current | 0,15A |
| Wiring types | 2-wire |
| Wire length | 150mm |
| Single wire thickness | 0.75mm2 |
| Type of cable | double insulated |
| Material (cover) | polycarbonate |
| Material (housing) | Aluminum |
| Color | White |
| Installation method | recessed |
| Mounting hole diameter | 80mm |

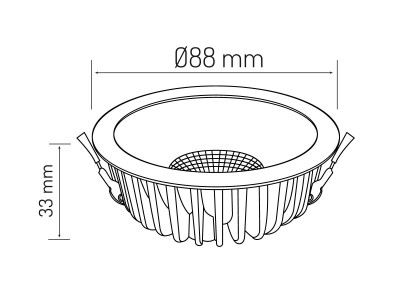

| Height | 33mm |
| Lamps diameter | 88mm |
| Lifespan | 50000h |
| Number of on/off cycles | 50000 |
| Power Factor | 0,58 |
| IEC protection class | III |
| For indoor use only | YES |
| IP Rating | IP20 |
| IK protection rating | IK03 |
| Ambient temperature suitable for operation | -5°C - +40°C |
| Storage temperature | -25°C - +45°C |
| Weight | 190g |
Kasulik informatsioon
Tehnilised andmed
Tarnija toote kirjeldus
The product stands out with its modern design and simple, concealed mounting. Its main advantages are: simplicity, elegance and innovativeness.
The product’s housing is made of aluminum, and its outer lens is made of polycarbonate, which entails good mechanical strength. A five-year manufacturer’s warranty is provided for the product.
The product’s supply voltage range is: AC 220-240.
QUANTUM has: 7 W. The product’s colour temperature is 4000 K. The products features four mounting diameters.
The cutting-edge FLICKER FREE technology ensures no light flickering that is harmful to the eyes. Glare rate level: UGR<19. Lighting angle: 60 ° deg. It enables optimal lighting of a chosen spot in a room.
Colour rendering index: Ra ≥ 85.
The diode type used in the product is COB Bridgelux. The product’s diode has over 50000 of durability. Power Factor: PF > 0,58. Number of on/off cycles: 50000.
Luminous efficiency: 100 lm/W. The generated light beam 700 lm.
The product operates in temperatures ranging from temperatur `-5 ÷ 40 °C. It’s suited for interior applications.
