Nutikas kodu Bluetooth – Wi-Fi ühendus HUB, MESH, TUYA / Smart Life
Tarne LEMONA electronics kontorisse 1-5 tööpäeva
 >10 tk | Keskladu |
| 6 tk | Tallinna kontor |
Tarne kulleriga koju 1-5 tööpäeva
Tarne pakiautomaati 1-4 tööpäeva
Kättetoimetamise tähtajad
Kontorist kättesaamine
Kontorist kättesaamine Tasuta
Kui teie tellimus on kogumiseks valmis, teavitame teid sellest SMS-i ja e-posti teel.
Kogus laos
| >10 tk | Keskladu |
| 6 tk | Tallinna kontor |
Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)
Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)
Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)
3,50 €
Kauba kirjeldus
Product Description

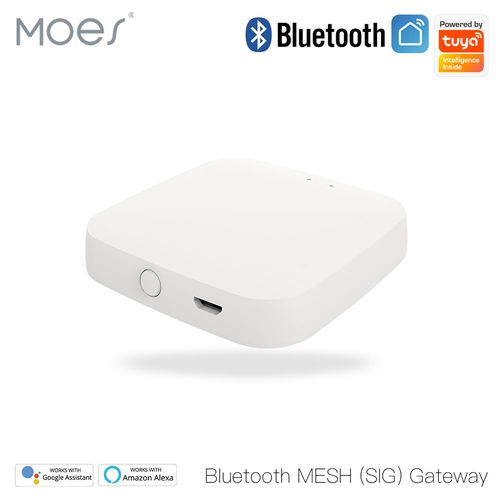

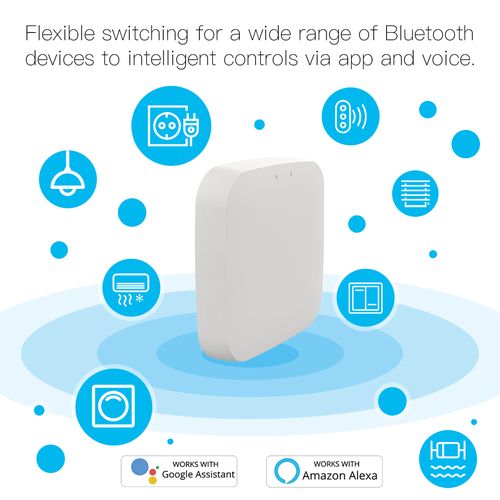

Bluetooth MESH (SIG) gateway is composed of highly integrated wireless WIFI module, Low energy wireless bluetooth module and main board. Through the Tuya Smart APP, users can implement device addition, device reset, third-party control, and Bluetooth (single point & mesh) group control to meet smart home and other applications.
Technical data
| Main features | ||
| Wireless technology | WIFI 802.11 b/g/n | |
| Bluetooth single point & Mesh | ||
| Antenna type | Built-in onboard antenna | |
| Power | Micro USB DC5V | |
| Adaptor output | 5V 1A | |
| Working current | <1A | |
| Hardware interface | 1 Micro-USB | |
| Status LED indicator | 2 LED | |
| Button | 1 (reset) | |
| Working temperature | -10-55℃ | |
| Working humidity | 10%-90%RH (non-condensing) | |
| Storage temperature | -20-60℃ | |
| Storage humidity | 5%-90%RH (non-condensing) | |

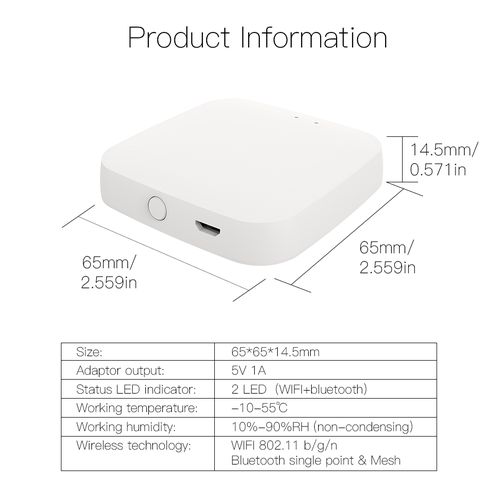

| Size | 65mm x 65mm x 14.5mm | |
| Net weight | 29g | |
| RF characteristics | ||
| Wi-Fi | Bluetooth single point&Mesh | |
| Wireless frequency | 2.400-2.4835 GHz | 2.400-2.4835 GHz |
| Network standard | WIFI 802.11 b/g/n | Bluetooth single point&Mesh |
| Transmission power | 21dBm | 7dBm |
| Channel | CH1-CH11 | CH0-CH39 channel |
| Transmission speed | 11b:1,2,5.5,11 (Mbps) | 1Mbps（BLE 4.2） |
| Network performance | ||
| Wireless encryption | AES 128bitencryption | |
| WPA-PSK/WPA2-PSK, | ||
| Network management | Long distance App configuration | |
| WIFI module firmware upgrade | ||
| Bluetooth module firmware upgrade | ||
