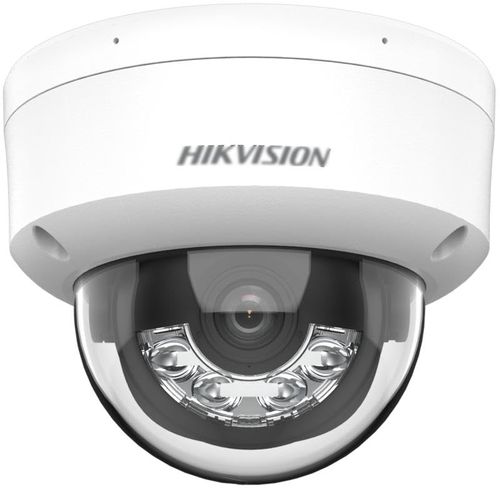

Hikvision Dome DS-2CD2143G2-LIS2U 2.8mm (4MP, AcuSense, IR+LED 30 m)
Номер продукта: KIP2CD2143G2LIS2U28
Фотография носит иллюстративный характер. Точные технические характеристики товара смотрите в описании.
Сроки доставки
2025-10-17 Планируемая доставка, если Вы закажете сейчас
Товар заказывается со склада поставщика. Если поставщик не сможет доставить данный товар до указанной даты, мы информируем Вас по электронной почте.
 Доступно | Склад поставщика |
Доставка на дом
Доставка на дом
После передачи товара курьеру мы сообщим вам об этом по электронной почте.
Более 50,00 € (Заказы до 1000 кг) | Бесплатно |
К 50,00 € (Заказы до 1000 кг) | 5,00 € |
Получение в почтомате
Получение в почтомате
После передачи товара курьеру мы сообщим вам об этом по электронной почте. Заказы на сумму свыше 50,00 € доставляются бесплатно.
3,50
Описание товара
Hikvision Dome DS-2CD2143G2-LIS2U 2.8mm (4MP, AcuSense, IR+LED 30 m)
Спецификации
Описание товара от поставщика
- High quality imaging with 4 MP resolution
- Acusense: Focus on human and vehicle classification based on deep learning
- Smart Hybrid Light: Integrates IR and White lights, 4 supplemental lighting modes
- -2U: Built-in arrayed dual-microphone for real-time high quality audio security
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal-resistant (IK10)
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
- SafetyCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
- Audio
- Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering-2U: Yes
- Camera
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Day & NightIR cut filter
- Image Sensor1/2.9" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- DORI
- DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Deep Learning Function
- Perimeter Protection Line crossing, intrusionSupport alarm triggering by specified target types (human and vehicle)
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,-S: trigger alarm output
- General
- DimensionØ121.5 mm × 97.6 mm (Ø4.78" × 3.84")
- General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- MaterialBase: aluminum alloy, cover: aluminum alloy
- Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- Power12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8.5 W
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- WeightApprox. 600 g (1.3 lb.)
- With Package WeightApprox. 830 g (1.8 lb.)
- Illuminator
- IR Wavelength850 nm
- Smart Supplement LightYes
- Supplement Light RangeUp to 30 m
- Supplement Light TypeIR,White Light
- Image
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image Parameters SwitchYes
- Image SettingsRotate mode
- Privacy Mask8 programmable polygon privacy masks
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)120 dB
- Interface
- Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)
- Audio Built-in Microphone: -2U: Arrayed dual-microphone-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset KeyYes
- Lens
- ApertureF1.6
- Depth of Field2.8 mm: 1.4 m to ∞4 mm: 1.5 m to ∞
- Focal Length & FOV2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122°4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
- Iris TypeFixed
- Lens MountM12
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Network
- APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users3 user levels: administrator, operator, and user
- Web BrowserPlug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Video
- Bit Rate ControlCBR,VBR
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Main Stream50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Target CroppingYes
- Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
