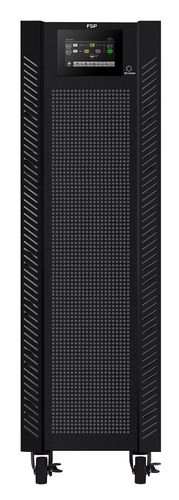

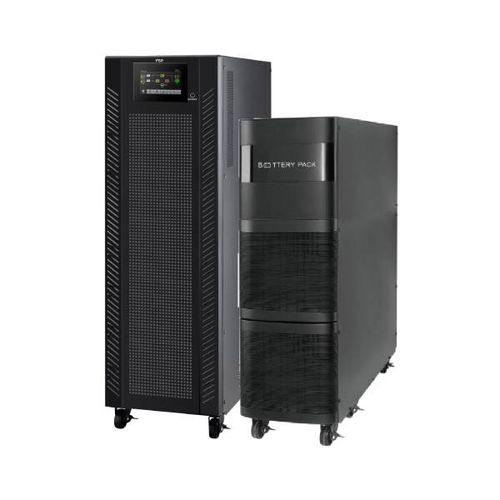

Источник бесперебойного питания 3-х фазный EPOS 20000ВА 20000Вт, сеть, стойка, FSP
Сроки доставки
Товар заказывается со склада поставщика. Если поставщик не сможет доставить данный товар до указанной даты, мы информируем Вас по электронной почте.
 Доступно | Склад поставщика |
Забрать в офисе LEMONA electronics
Забрать в офисе LEMONA electronics Бесплатно
Количество в магазине
 Недоступно | Центральный склад |
| Недоступно | Таллиннский филиал |
Доставка на дом
Доставка на дом
После передачи товара курьеру мы сообщим вам об этом по электронной почте.
Более 25,00 € (Заказы до 1000 кг) | Бесплатно |
К 25,00 € (Заказы до 1000 кг) | 4,50 € |
Получение в почтомате
Получение в почтомате
3,50 €
Описание товара
Description
- True double-conversion
- DSP technology guarantees high performance
- Output power factor 1 for 10K-80K
- Active power factor correction in all phases
- 50Hz/60Hz frequency converter mode
- ECO mode operation for energy saving (ECO)
- Emergency power off function (EPO)
- Generator compatible
- SNMP+USB+RS-232 multiple communications
- 3-stage extendable charging design for optimized battery performance
- Adjustable battery numbers for long-run model
- Maintenance bypass available
- Parallel operation with commom battery
- Optional parallel operation
- Optional isolation transformer offers full isolation and complete common mode noise rejection
Technical data
| EPOS 3P/3P 30K~200K ONLINE UPS SELECTION GUIDE | |||||||
| MODEL | EPOS 10K(L)* | EPOS 15K(L) | EPOS 20K(L)* | EPOS 30K(L)* | EPOS 40K(L) | EPOS 60KL | EPOS 80KL |
| PHASE | 3- phase in/3-phase out | ||||||
| CAPACITY | 10kVA/10kW | 15kVA/15kW | 20kVA/20kW | 30kVA / 30kW | 40kVA / 40kW | 60kVA / 60kW | 80kVA / 80kW |
| PARALLEL CAPABILITY | 3 | ||||||
| INPUT | |||||||
| Nominal Voltage | 3 x 400 VAC (3Ph+N) | ||||||
| Voltage Range | 190-520 Vac (3-phase) @ 50% load 305-478 Vac (3-phase) @ 100% load | ||||||
| Frequency Range | 46~54 Hz or 56~64Hz | ||||||
| Power Factor | ≧ 0.99 @ 100% load | ||||||
| OUTPUT | |||||||
| Output Voltage | 3 x 360*/380/400/415 Vac (3Ph+N) | ||||||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||||||
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | ||||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||||
| Current Crest Ratio | 3:1 (max.) | ||||||
| Harmonic Distortion | ≦ 2 % THD (Linear Load) ≦ 5 % THD (Non-linear Load) | ||||||
| Transfer time AC mode to Battery mode | zero | ||||||
| Transfer time Inverter to Bypass | zero | ||||||
| Waveform (Batt. Mode) | Pure Sine Wave | ||||||
| Overload AC Mode | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately | ||||||
| Overload Battery Mode | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately | ||||||
| EFFICIENCY | |||||||
| AC Mode | 95.50% | ||||||
| ECO Mode | 98.50% | ||||||
| Battery Mode | 94.50% | ||||||
| BATTERY | |||||||
|
| Standard model | ||||||
| Battery Type | 12V/9Ah | 12V/9Ah | 12V/9Ah | 12V/7Ah | 12V/9Ah | N/A | |
| Numbers | (10+10)pcs | (16+16)pcs | (16+16)pcs | (16+16)pcs x 2 strings | (16+16)pcs x 2 strings | ||
| Typical Recharge Time | 9 hours recover to 90% capacity | ||||||
| Charging Current (max.) | 1A ~ 12A (Adjustable) | ||||||
| Charging Voltage | +/-136.5 VDC ± 10% | +/-218 Vdc ± 10% | |||||
|
| Long-run model | ||||||
| Battery Type | Depending on the capacity of external batteries | ||||||
| Numbers | 20 pcs | 32~40 pcs (Adjustable) | |||||
| Charging Current (max.) | 1A ~ 12A (Adjustable) | 2A ~ 24 A (Adjustable) | |||||
| Charging Voltage | +/-136.5 VDC ± 10% | +/-13.65V*N (N=16~20) | |||||
| INDICATORS | |||||||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | ||||||
| PHYSICAL | |||||||
|
| Standard model | ||||||
| Dimension, D X W X H (mm) | 630 x 250 x 826 | 815 x 300 x 1000 | N/A | ||||
| Net Weight (kgs) | 124 | 139 | 225 | 250 | |||
|
| Long-run model | ||||||
| Dimension, D X W X H (mm) | 630 x 250 x 826 | 815 x 300 x 1000 | 790 x 360 x 1010 | ||||
| Net Weight (kgs) | 28 | 43 | 60 | 67 | 108 | 113 | |
| ENVIRONMENT | |||||||
| Operation Temperture | 0-40°C | ||||||
| Operation Humidity | <95% and non-condersing | ||||||
| Noise Level | Less than 55dB @ 1Meter | Less than 58dB @ 1Meter | Less than 65dB @ 1Meter | Less than 70dB @ 1Meter | Less than 75dB @ 1Meter | ||
| MANAGEMENT | |||||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux and MAC | ||||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||||
| *When output voltage is set as 3 x 360VAC, the output power of the unit will be de-rated to 90%. | |||||||
| Product specifications are subject to change without further notice | |||||||
Backup time table
| UPS model | Battery bank | Back up time with load, min | |||
| 25% | 50% | 75% | 100% | ||
| EPOS 3/1 10KL | +1BB +-120V 18Ah -240V/18Ah | 50 | 22 | 13 | 9 |
| EPOS 3/3 10KL | +2BB +-120V 18Ah -240V/36Ah | 110 | 51 | 30 | 22 |
| EPOS 3/1 20KL | +1BB +-240V 18Ah -480V/18Ah | 49 | 22 | 13 | 9.5 |
| EPOS 3/3 20KL | +2BB +-240V 18Ah -480V/36Ah | 109 | 50 | 31 | 22.8 |
| EPOS 3/3 30KL | +1BB +-240V 18Ah -480V/18Ah | 30 | 13 | 7.7 | 5.1 |
| +2BB +-240V 18Ah -480V/36Ah | 69 | 30 | 19 | 14 | |
| EPOS 3/3 40KL | +1BB +-240V 18Ah -480V/18Ah | 22 | 9.1 | 4.9 | 3.1 |
| +2BB +-240V 18Ah -480V/36Ah | 49 | 22 | 13 | 9.4 | |
