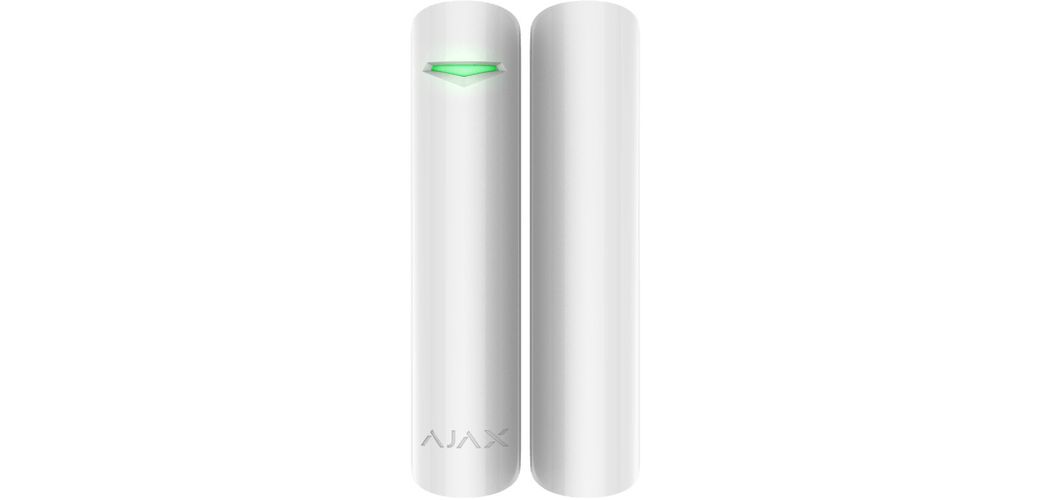

Wireless magnetic contact Ajax DoorProtect 38099.03.WH1 (white)
Номер продукта: AJDOORPW
Фотография носит иллюстративный характер. Точные технические характеристики товара смотрите в описании.
Сроки доставки
2025-08-08 Планируемая доставка, если Вы закажете сейчас
Товар заказывается со склада поставщика. Если поставщик не сможет доставить данный товар до указанной даты, мы информируем Вас по электронной почте.
 Доступно | Склад поставщика |
Доставка на дом
Доставка на дом
После передачи товара курьеру мы сообщим вам об этом по электронной почте.
Более 50,00 € (Заказы до 1000 кг) | Бесплатно |
К 50,00 € (Заказы до 1000 кг) | 5,00 € |
Получение в почтомате
Получение в почтомате
После передачи товара курьеру мы сообщим вам об этом по электронной почте. Заказы на сумму свыше 50,00 € доставляются бесплатно.
3,50
Описание товара
Wireless magnetic contact Ajax DoorProtect 38099.03.WH1 (white)
Спецификации
Описание товара от поставщика
- Type: Wireless magnetic sensor
- Model: Ajax DoorProtect
- Color: White
- Additional contact: For third-party detector
- Communication range: up to 1200 m
- Battery life: up to 7 years
- Product code: 38099.03.WH1
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced sabotage protection., Block encryption featuring a dynamic key., Instant notifications., Remote configuration in the Ajax apps., Learn more
- Frequency bands866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz * 915.85–926.5 MHz 921.0–922.0 MHz, * Certified according to UL/ULC standards., Depends on the sales region.
- Maximum effective radiated power (ERP)up to 20 mW, Automatic power control to reduce power consumption and noise interference.
- Radio signal modulationGFSK
- Radio signal rangeup to 3,900 ft, Between detector and control panel (or range extender) in an open space., Calculate the radio signal range at the facility
- Encrypted communicationAll the data stored and transmitted are protected by block encryption with a dynamic key.
- Frequency hoppingRadio communication uses frequency hopping to prevent interception and jamming., Learn more
- Detection
- Sensitive element1 reed switch
- Magnetssmall and big one come in the set, The small magnet operates at a distance of up to 0.4″ from the detector, and the big magnet — up to 0.8″.
- Protection against reed switch chatteringThe detector ignores vibrations lasting up to 0.15 s.
- Input to connect an additional detectorWired detector with the normally closed (NC) contact type., How to connect a third-party wired detector
- ChimeWhen the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered., Learn more
- Sabotage protection
- Tamper alarmNotifications on attempts to detach the detector from the surface or remove it from the mounting panel., Learn more
- Protection against spoofingdevice authentication
- Communication loss detectionafter 36 s, Depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Power supply
- Battery1 × CR123A, Pre-installed.
- Typetype C
- Calculated battery lifeup to 7 years
- Device’s nominal operating voltage3 V⎓
- Quiescent device’s current consumption at nominal voltage17.5 μA
- Maximum device’s current consumption at nominal voltage21.4 mA
- Full battery capacity1,600 mAh
- Low battery voltage2.5 V⎓
- Low battery recovery voltage2.7 V⎓
- End-of-life battery voltage2.1 V⎓, Device is switched off.
- End-of-life battery capacity300 mAh
- ManufacturerHuiderui, UL listed.
- Enclosure
- Detector dimensions3.54″ × 0.79″ × 0.79″
- Dimensions of the big magnet3.54″ × 0.79″ × 0.79″
- Dimensions of the small magnet2.16″ × 0.43″ × 0.24″
- Detector weight1.02 oz
- Operating temperature rangefrom 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
- Operating humidityup to 75%, Humidity of up to 85% is certified according to UL/ULC standards.
- Protection classIP50
Параметры товара поставщика
Product code
AJDOORPW
Brand
AJAX
Category
Magnetic contacts
Supplier's product code
AJDOORPW
Product ID
U-4625733
Информация, предоставленная поставщиком, может отличаться от самого продукта. Если вы заметили неточности, сообщите нам об этом, написав на адрес [email protected].
