Kauba kirjeldus

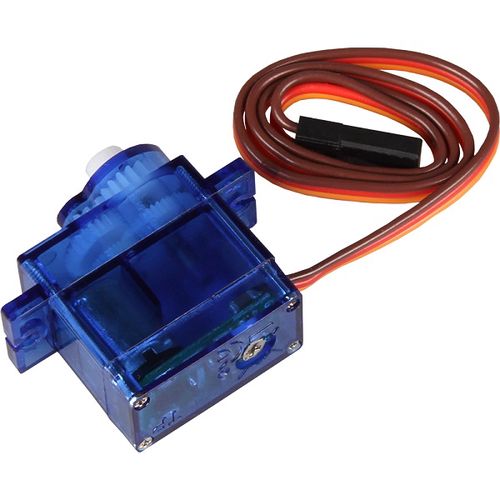

Servo motor FS90R

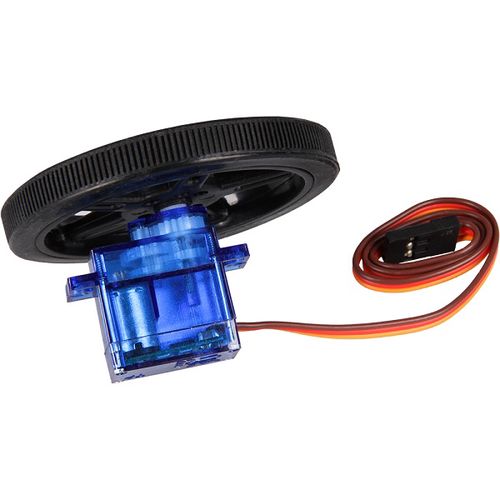

This continuous servo motor FS90R with an 6 cm large wheel is due to its compact size perfect for control and regulation of small loads and thus a good choice for engineering. Operated with 5 V, this servo motor has a peak torque of up to 1,5 kg/cm.
Please note: This is a continuous servo motor. Unlike a conventional servo motor, this one uses a PWM signal to set the speed and direction of rotation instead of the position.
Specifications
Peak torque | 1,5 kg/cm |
Rotations (without load) | 110-130 rpm |
Voltage supply | 4 - 6V DC |
Operating voltage | 4.8 - 6 V |
Operating current | 100 - 120 mA |
Idle current | 5 - 6 mA |
Stall current | 550 - 650 mA |
Gear spline | Plastic (Nylon and POM) |
Horn gear spline | 20T (4.8mm) |
Horn type | Plastic |
Connection wire length | 200 mm |
Command signal | Pulse width modulation |
Amplifier type | Analog comparator |
Pulse width range | 700 - 2300 µs |
Dead band width | 90 µs |
Default stop position | 1500 (+/-45) µs |
Rotating direction CW | 700-1500 µs |
Rotating direction CCW | 1500 - 2300 µs |
Dimensions of Wheel | Ø60mm x 8mm, 10g |
Dimensions | 32,6mm x 32mm x 12,5mm |
Weight | 9g |

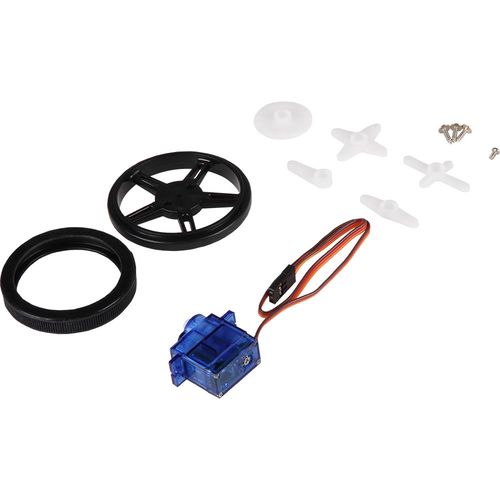

Set included | Servo variklis, ratukas, tvirtinimo priedai |
Kasulik informatsioon
Tehnilised andmed
Tarnija toote kirjeldus
Operated with 5 V, this servo motor has a peak torque of up to 1,5 kg/cm.
Technical data:
Peak torque: 1,5 kg/cm
Rotations ( without load ): 110-130 rpm
Voltage supply: 4-6V DC
Operating voltage: 4.8 - 6 V
Operating current: 100 - 120 mA
Idle current: 5-6 mA
Stall current: 550-650 mA
Gear spline: Plastic ( Nylon and POM )
Horn gear spline: 20T ( 4.8mm )
Horn type: Plastic
Connection wire length: 200 mm
Command signal: Pulse width modulation
Amplifier type: Analog comparator
Pulse width range: 700-2300 µsec
Dead band width: 90 µsec
Default stop position: 1500 ( +/-45 ) µsec
Rotating direction CW: when 700-1500 µsec
Rotating direction CCW: when 1500 - 2300 µsec
