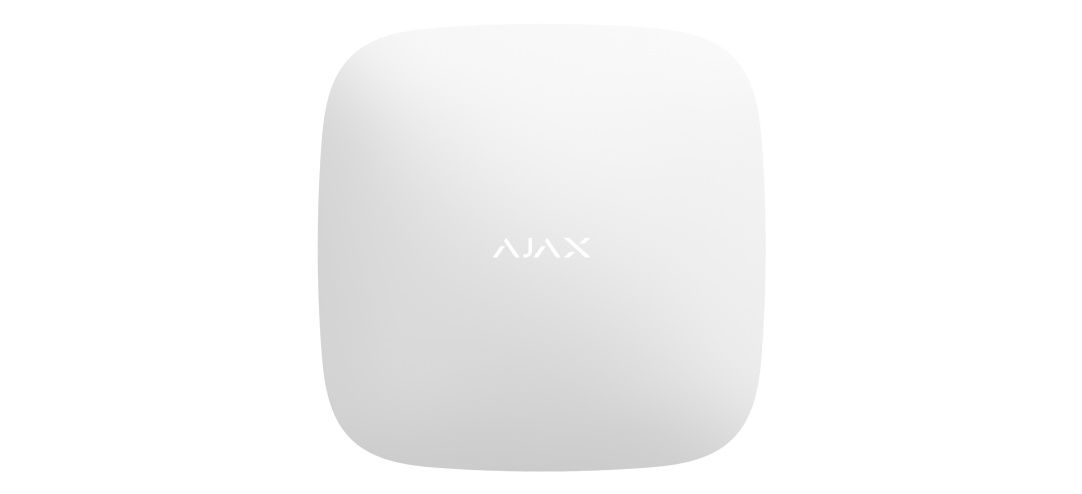

Wireless Ajax signal repeater REX 38205.37.WH1 (white)
Tootekood: AJREXW
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-08-21 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
Wireless Ajax signal repeater REX 38205.37.WH1 (white)
Tehnilised andmed
Tarnija toote kirjeldus
- Type: Wireless signal repeater
- Model: Ajax ReX
- Color: White
- Device support: up to 5 devices in one system
- Communication range: up to 1800 m
- Backup battery operation: up to 35 hours
- Product code: 38205.37.WH1
- Connection possibilities
- Number of ReX Jeweller connected to the hubup to 5, Depends on the hub model.
- Number of devices connected to ReX Jewellerup to 199, Depends on the hub model. Only Hub 2 Plus Jeweller and Hub 2 (4G) Jeweller are under certification by UL.
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
- Frequency bands866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz* 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
- Maximum effective radiated power (ERP)up to 25 mW, Automatic power control to reduce power consumption and radio interference.
- Radio signal modulationGFSK
- Radio communication rangeup to 5,900 ft, Between the range extender and a hub in an open space., Calculate radio communication range at the facility
- Encrypted communicationAll stored and transmitted data are protected by block encryption featuring a dynamic key.
- Frequency hoppingTo prevent radio interference and jamming., Learn more
- Delivery time
- Alarm delivery time to the hub0.3 s
- Sabotage protection
- Tamper alarmNotifications on attempts to detach the device from the surface or remove it from the mounting panel., Learn more
- Protection against spoofingdevice authentication
- Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Power supply
- Main110–240 V, 50/60 Hz, Up to 6 W of mains power consumption.
- Backupbuilt-in backup battery Rechargeable Li-ion Polymer Battery XK 953562T 3.7 V⎓, 2 Ah, Calculated battery life:, Up to 24 hours of backup battery life when Ethernet is disabled., Up to 35 hours of backup battery life., Up to 4 hours of maximum time to recharge a backup battery of maximum capacity to 80% of its rated capacity., * From the backup battery after the loss of the main power supply., The range extender manufactured after October 7, 2022 , has a 3-pin battery. If the range extender was manufactured earlier, the battery can be a 2-pin or 3-pin one. To find out the battery type, contact Ajax Technical Support or check it manually., Learn more, Manufacturer Dongguan Lean Power, UL listed.
- Typetype A
- Quiescent device’s current consumption at nominal voltage11.4 mA
- Maximum device’s current consumption at nominal voltage14 mA
- Low battery voltage3.7 V⎓
- Low battery recovery voltage4.1 V⎓
- End-of-life battery voltage3.6 V⎓, Device is switched off.
- Minimum energy level for a backup battery in the charged state100%
- Alternative12 V⎓, Connected via an alternative power supply unit * 12V PSU for Hub/Hub Plus/ReX which is sold separately ., Learn more, * Not evaluated by UL.
- Enclosure
- Dimensions6.42″ × 6.42″ × 1.42″
- Weight11.64 oz
- Operating temperature rangefrom 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
- Operating humidityup to 75%
- Protection classIP20
Tarnija toote parameetrid
Product code
AJREXW
Brand
AJAX
Category
Hubs
Supplier's product code
AJREXW
Product ID
U-4625763
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
