Kauba kirjeldus

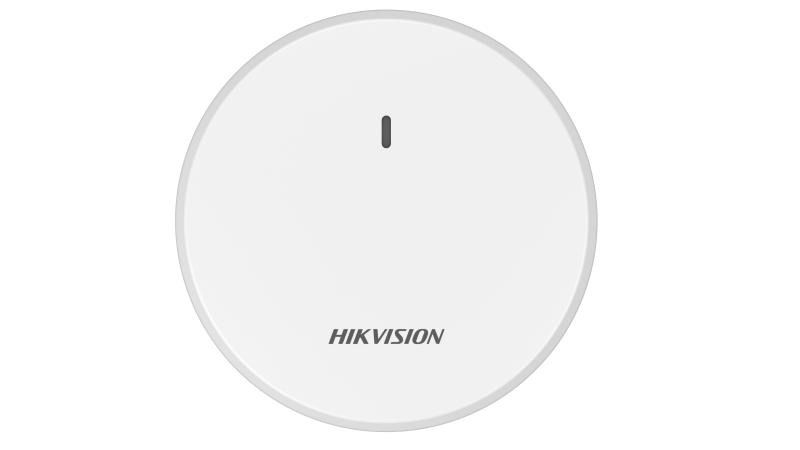

Wireless LAN transmission Hikvision DS-3WAP522-SI
Tehnilised andmed
Tarnija toote kirjeldus
- 1 Gigabit Port with PoE Input
- 802.11ac Wave 2 1167 Mbps
- 80+ Concurrent User Connections
- Auto RF Optimization
- Support Intelligent Fast Roaming
- Approval
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
- General
- Installation ModeDesk-Mounted,Wall-Mounted,Ceiling Mounting
- Packing List1200 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
- Power ConsumptionMax. 11.35 W
- Product Dimensions (W × H × D) 220 mm × 220 mm × 35 mm (8.66'' × 8.66'' × 1.37'')
- Storage Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 70 °C (-40 °F to 158 °F)
- Weight0.4 kg (0.88 lb)
- Working Humidity5% to 95% (no condensation)
- Working Temperature0 °C to 40 °C (32 °F to 104 °F)
- Hardware Specifications
- Interface1 × Gigabit RJ45 uplink port
- LED IndicatorYellow/green/blue for different working states, flashing mode
- Power SupplyIEEE 802.3af/at POE,12 VDC 1.5 A
- Reset ButtonHardware Resetting Button
- Software Specifications
- Management & MaintenanceCentralized AC management
- Version Upgradeupgrade on Web
- WLAN SecurityWAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support SSID and VLAN binding,Support 802.11i
- WLAN Parameters
- Antenna Gain2.4 GHz: 3 dBi,5 GHz: 4 dBi
- Antenna TypeBuilt-in omnidirectional antennas
- Channel Width 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/MHz
- Maximum Number of Clients256
- Maximum Number of SSIDs8
- Modulation TechnologyOFDM：BPSK@6/9Mbp、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps; DSSS：DBPSK@1Mbps、DQPSK@2Mbps、[email protected]/11Mbps; MIMO-OFDM （11n）：MCS 0-15; MIMO-OFDM （11ac）：MCS 0-9
- Number of Antennas 2.4 GHz：2；5 GHz：2
- Recommended Number of Clients80
- Spatial Streams2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
- Transmit Power20 dBm
- Wi-Fi Speed2.4 G: 300 Mbps,5 G: 867 Mbps
- Wi-Fi StandardsWi-Fi 5
- Working Frequency Bandradio 1: 5G(11a/an/ac), radio 2: 2.4G(11b/g/gn)
