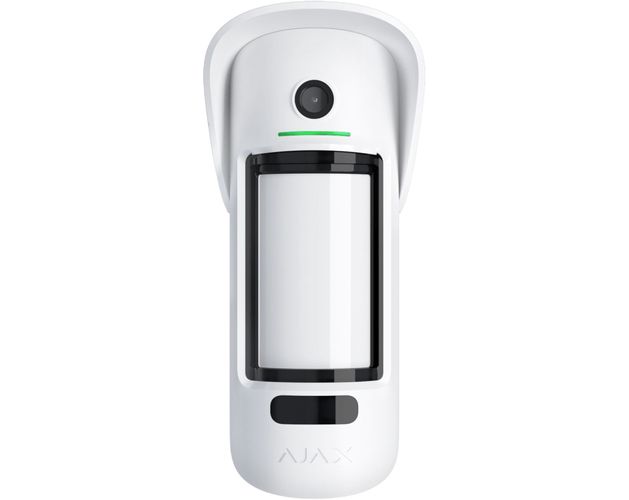

Wireless motion detector with camera Ajax MotionCam Outdoor PhOD 39293.121.WH1 (white)
Tootekood: AJMOTIONCAMOPHODW
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-08-08 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
Wireless motion detector with camera Ajax MotionCam Outdoor PhOD 39293.121.WH1 (white)
Tehnilised andmed
Tarnija toote kirjeldus
- Type: Wireless motion detector with camera
- Model: Ajax MotionCam Outdoor phOD
- Color: White
- Technology: PIR
- Detection range: 15 m
- Detection angle: 90°
- Pet immunity: up to 20 kg
- Product code: 39293.121.WH1
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit alarms and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote configuration via the Ajax apps., Learn more
- Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region.
- Maximum effective radiated power (ERP)up to 20 mW
- Radio signal modulationGFSK
- Radio signal rangeup to 5,600 ft, Between detector and control panel or range extender in an open space., Calculate radio signal range at the facility
- Encrypted communicationAll the data stored and transmitted are protected by block encryption with a dynamic key.
- Frequency hoppingRadio communication uses frequency hopping to prevent interception and jamming., Learn more
- Wings communication technologyKey features:, Two-way communication., Block encryption featuring a dynamic key., Advanced anti-sabotage., Data package reloading in case of transmission errors., Photo delivery check., Learn more
- Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region.
- Radio signal rangeup to 5,600 ft, Between detector and control panel or range extender in an open space., Calculate radio signal range at the facility
- Frequency hoppingRadio communication uses frequency hopping to prevent interception and jamming., Learn more
- Detection
- Sensitive elements2 × PIR sensor
- Motion detection distanceup to 10 ft–49 ft, When installed at a height of 2.6 ft–4.3 ft. Adjusted with a scrollbar on the device enclosure.
- Motion detection angleshorizontal — 90° vertical — N/A
- Motion detection speedfrom 1 to 6.6 ft/s, The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
- Sensitivity3 levels, Adjusted by PRO or user with admin rights in the Ajax app.
- Pet immunityweight: not relevant height: up to 2.6 ft, Learn more
- False alarm preventionLISA, SmartDetect, Software algorithms.
- Temperature compensationEffective motion detection at temperatures from −13°F to 140°F.
- Photo verification
- Photo by alarmA built-in camera is activated if the detector is armed, and motion is detected., Learn more
- Photo on demandUser takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default., Learn more
- Photo by scenarioA detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default., Learn more
- Photo by scheduleThe detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher., Learn more
- Photo by arming/disarmingThe detector automatically takes photos when the security state is changed., Learn more
- Photo resolution640 × 352 px 320 × 176 px (by default), Adjusted by PRO or user with admin rights in the Ajax app.
- Camera viewing angleshorizontal — 105° vertical — 50°
- IR backlightFor night photography and low light conditions.
- Pictures in a seriesfrom 1 to 5 images with resolution of 320 × 176 px from 1 to 3 images with resolution of 640 × 352 px, Adjusted by PRO or user with admin rights in the Ajax app.
- Photo delivery timeup to 9 s — 320 × 176 px resolution up to 20 s — 640 × 352 px resolution, When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.
- TV distortion (EBU standard)barrel — 17%
- Anti-sabotage protection
- Anti-masking systemThe detector is equipped with masking sensors reacting to hindering, covering and painting the lens., Learn more
- Tampering alarmAlerts of attempts to detach the detector from the surface or remove it from the mounting panel., Learn more
- Protection against forgerydevice authentication
- Communication loss detectionwithin 36 s, Detection time depends on the Jeweller settings., Learn more
- Enclosure
- Dimensions8.11″ × 4.25″ × 3.66″
- Weight16.58 oz
- Operating temperature rangefrom −13°F to 140°F
- Operating humidityup to 95%
- Protection classIP56
