Kauba kirjeldus

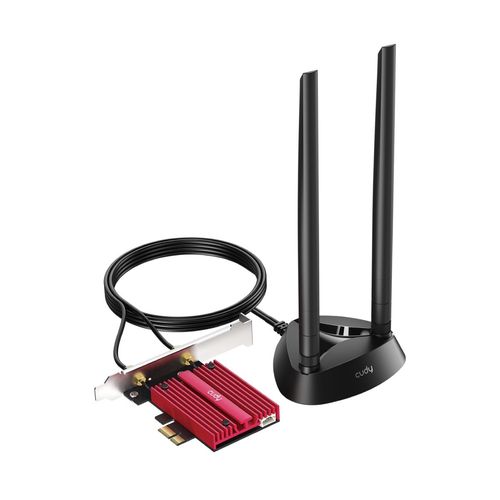

Bluetooth ir Wi-Fi PCI-e adapter CUDY WE9300S
Tehnilised andmed
Laokood
U-4825406
NomNr
CUDYWE9300S
Tarnija toote kirjeldus
- Type: Wireless adapter (PCIe)
- Model: CUDY WE9300S 1.0
- WiFi standard: Wi-Fi 7 (802.11be)
- Wi-Fi speed: 688 Mbps @ 2,4 GHz; 2882 Mbps @ 5 GHz; 5765 Mbps @ 6 GHz
- Bluetooth standard: Bluetooth 5.4
- MIMO technology: 2x2 MU-MIMO
- Security protocols: WPA/WPA2/WPA3
- Antennas: 2x RP-SMA, removable
- Maximum bandwidth: 160 MHz
- Motherboard interface requirements: PCI-E 1.1 x1 or aukštesnė; USB 9-PIN Connection (Bluetooth function)
- Compatibility: Windows 11 64-Bit su Intel CPU
- Operating temperature: 0...70°C
- General
- Product nameCudy WE9300S (BE9300)
- FunctionWi-Fi 7 + Bluetooth 5.4 PCI-E Adapter
- ChipsetIntel BE200
- Wi-Fi bandsTri-Band: 2.4 GHz, 5 GHz, 6 GHz
- Wi-Fi speeds2.4 GHz: 688 Mbps, 5 GHz: 2882 Mbps, 6 GHz: 5760 Mbps
- Wi-Fi streams2T2R (2×2 MIMO) on all bands
- Wi-Fi standardsWi-Fi 7 (IEEE 802.11be), OFDMA, MU-MIMO, BSS Coloring, Puncturing, MRU, MLO, 4K-QAM
- Max channel widthUS: 320 MHz, EU: 240 MHz
- Bluetooth versionBluetooth 5.4
- Antennas2 × detachable antennas on magnetic base
- Antenna connectorsRP-SMA female
- Wi-Fi transmission power (CE)<20 dBm (2.4 GHz), <23 dBm (5.15–5.35 & 6 GHz), <30 dBm (5.47–5.725 GHz)
- Wi-Fi transmission power (FCC)<24 dBm (5.25–5.725 GHz), <25 dBm (6 GHz), <30 dBm (2.4 GHz, 5.15–5.25 & 5.725–5.825 GHz)
- Security protocolsWPA-PSK (WPA/WPA2/WPA3)
- System requirementsPCI-E x1 slot for Wi-Fi, USB 9-pin header for Bluetooth
- OS compatibilityWindows 11 64-bit (Intel CPU required)
- Operating temperature0 °C ~ 70 °C (32 °F ~ 158 °F)
- Storage temperature-40 °C ~ 70 °C (-40 °F ~ 158 °F)
- Operating humidity10% ~ 90% (non-condensing)
- Storage humidity5% ~ 95% (non-condensing)
- Device dimensions120.8 × 98.4 × 21.5 mm (4.76 × 3.87 × 0.85 in)
- Antenna base dimensionsΦ94.5 × 221.5 mm (Φ3.72 × 8.72 in)
- Package contentsMain product, detachable antennas, magnetic base, Bluetooth to 9-pin USB cable, low-profile bracket, installation guide
- DriverManual installation (downloadable from Cudy support)
Tarnija toote parameetrid
Product code
CUDYWE9300S
Category
Accessories for commutatio
Supplier's product code
CUDYWE9300S
Product ID
U-4825406
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
