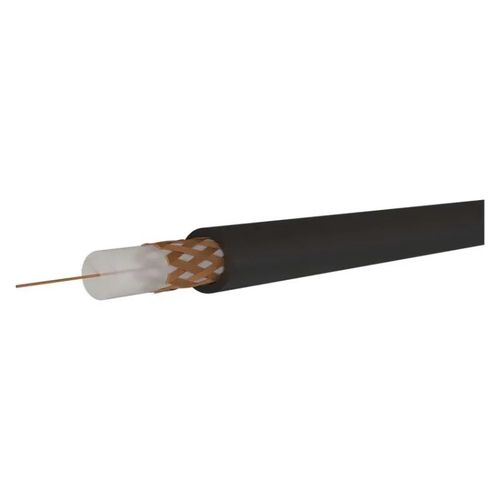

Coaxial Cable RG59BU, 500m, EMOS
Toote kood: S5194
Kättetoimetamise tähtajad
2024-05-28 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.
3,50 €
Tarnija toote kirjeldus
Tarnija toote parameetrid
APE = air dielectric
no
capacity (pF/m)
70
coaxial cable type
RG59B/U
color cable sheath > Cable sheath color
black
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
6.05 mm
diameter of the inner conductor
0,58 mm
dielectric type, diameter
SPE 3.7 mm
factor of shortening
0.66
FPE = Foam dielectric
no
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
>10 000
intended use
CCTV cabling
material of the cable jacket
PVC
material of the inner conductor
copper plated steel
material of the shielding
copper clad aluminium (CCA)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
not stated
max. attenuation at 20 °C (dB/100 m) 10 MHz
3
max. attenuation at 20 °C (dB/100 m) 100 MHz
9
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
not stated
max. attenuation at 20 °C (dB/100 m) 450 MHz
20
max. attenuation at 20 °C (dB/100 m) 650 MHz
28
max. attenuation at 20 °C (dB/100 m) 860 MHz
32
max. DC resistance at 20 °C (Ohm/km) - inner core
170
max. DC resistance at 20 °C (Ohm/km) - outer core
17
min. bend radius single/multiple
25/50 mm
min. return loss at 20 °C (dB) 10 to 300 MHz
20
min. return loss at 20 °C (dB) 600 to 900 MHz
16
min. return loss at 20°C (dB) 300 to 600 MHz
16
min. shielding attenuation (dB) 10 ~ 800 MHz
Ra >90
mounting temperature
+5 °C to +60 °C
number of braiding wires
128× 0.12 mm
number of shieldings
1
packaging
500 m, wooden drum
PE = polyethylene dielectric
SPE
PES = layer film
no
reaction to the fire
Fca
recommended types of connectors - F pressing
not stated
recommended types of connectors - F screwing
not stated
shielding diameter
128× 0.12 mm²
shielding I. foil
yes
shielding II. foil
none
shielding protection
>95 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
no
type of packaging - labeled yardage > Type of packaging - labeled meters
1–500 m
type of packaging - length
500 m
type of packaging - type of coil
wooden coil
UV resistant
yes
warranty period
2 years
weight (kg/km)
55
Brand
EMOS
Supplier's product code
S5194
Product ID
U-2878400
NomNr
S5194
