Kauba kirjeldus

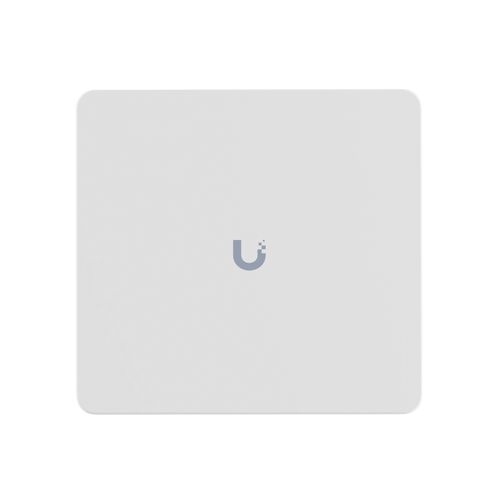

Door controller Ubiquiti UniFi EAH-8-EU
Tehnilised andmed
Tarnija toote kirjeldus
- Type: Door controller
- Brand: Ubiquiti
- Model: EAH-8-EU
- Supported doors: Up to 8
- Ports: 8x PoE, 8 reader ports
- PoE power: 60W
- Power consumption: 240W
- Sensors: 2 opening and 2 door status sensors per door (total 16)
- Operating temperature: 0...40°C
- General
- Dimensions379 x 355 x 105 mm (15 x 14 x 4.1")
- Supported Doors8
- Input Terminals(8) Door exit request, (8) Door position, (1) Emergency
- Power MethodUniversal input, 100–240V AC, Max. 4.4A, 50/60 Hz, 32–48V DC Lead Acid Battery, Max. 7.5A @32V
- UniFi Application SuiteAccess
- WeightDevice: 9.1 kg (20 lb), Mount: 624 g (1.4 lb)
- Enclosure MaterialSGCC steel housing with polycarbonate cover
- Mount MaterialSGCC steel
- MountingWall
- Indoor and Outdoor UseIndoor only
- Ambient Operating Temperature0 to 40° C (32 to 104° F)
- Ambient Operating Humidity5 to 95% noncondensing
- Networking Interface(10) 10/100/1000 Base-T
- PoE Interface(8) PoE
- Total Available PoE60W
- Power SupplyAC/DC, internal
- Max. Power Consumption240W
- Max. PoE Wattage per Port15.4W
- Digital Input(8) Inputs for request-to-exit devices, (8) Inputs for door position sensors, (1) Emergency
- Dry Output Relay(8) Lock terminals (12V or Dry), (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
- Powered Output RelayLock: 12V DC, 1A/ Dry, Aux: Dry only
- LEDsW/B
- Buttons(1) Factory-reset
- Recommend Max. Cable LengthUA-Lock-Electric (400mA): 24 AWG: 25 m (82 ft), 22 AWG: 42 m (138 ft), 20 AWG: 66 m (217 ft), 18 AWG: 100 m (328 ft)
- PoE Cabling RequirementsMinimum Cat 5e cabling recommended; Performance category should match transmission speed at installation site. Minimum conductor gauge: 26 AWG (0.13 mm²) for patch cords, 24 AWG (0.21 mm²) for horizontal or riser cable.
- UL 294 LevelDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
- UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. Intended to comply with ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
- CAN/ULC-60839-11-1 GradeGrade assignment: I
- CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- DocumentEAH-8, Ver 01
Tarnija toote parameetrid
Category
Access cont
Product code
UBIQEAH8EU
Brand
Ubiquiti
Supplier's product code
UBIQEAH8EU
Product ID
U-4615613
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
