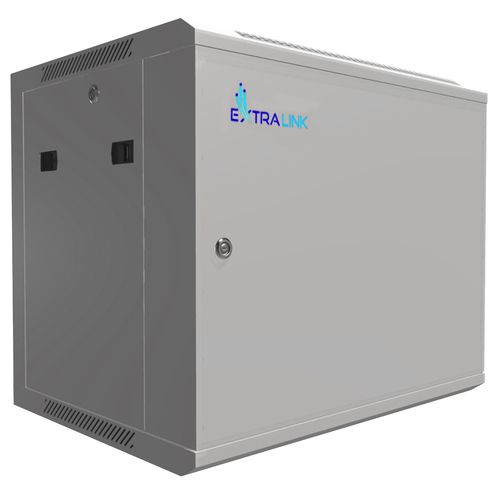

EXTRALINK 9U rack cabinet, 600x450, with tin doors
The Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The external walls are made of cold-rolled steel sheet. Cabinet doors are made of solid sheet metal with the possibility of opening to the left or right side.
Clearly marked cabinet height
Vertical rails have a corresponding height designation, which is 9U (unit). The total height of the cabinet is 50.5 cm.
Easy removal of side walls
Snap fasteners on the side walls allow for their disassembly. Locks and keys are included.
Fan-installed ceiling
On the ceiling of the cabinet there are 2 places to install fans for better cooling of the devices, as well as additional conduit for pulling out cables.
Cabinet construction - drawing
Features
Features
- Standard 19'' mounting, welded frame, reliable design
- The frame construction is prepared for self-assembly, which facilitates transport and saves shipping costs
- Standing/Wall Mounting
- Easy installation (patent)
- Removable side panels
- Holes for cable entry, both on the top cover and on the bottom panel
- Door opening angle exceeding 180 degrees
| Cabinet hight | 9U |
| Back door construction | Metal |
| Back door key lock | No |
| Batteries included | No |
| Built-in UPS | No |
| Colour | Grey |
| Cooling type | Passive |
| Depth | 450mm |
| Depth | 450 |
| Frame type | Closed |
| Front door construction | Metal |
| Front door key lock | Yes |
| Height | 605 |
| Key lock | Yes |
| Manual | Yes |
| Material | Metal |
| Maximum weight capacity | 55 |
| Nuts included | Yes |
| Package depth | 640 |
| Package height | 640 |
| Package weight | 20 |
| Package width | 160 |
| Product colour | Grey |
| Rack capacity | 9U |
| Rack rails | Yes |
| Removable back door | No |
| Removable front door | Yes |
| Removable side panels | Yes |
| Screws included | Yes |
| Side panel construction | Metal |
| Side panel key lock | Yes |
| Side panels included | Yes |
| Size (imperial) | 48.3 |
| Soundproof | No |
| Temperature sensor | No |
| Type | Wall mounted rack |
| Type of doors | Metal |
| Width | 600mm |
| Width | 600 |
