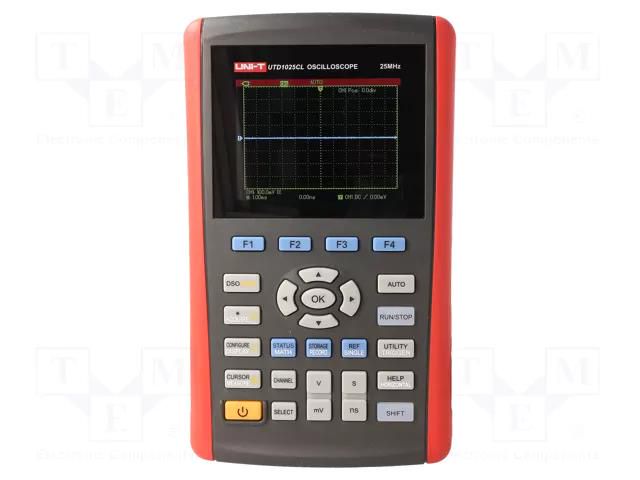

Handheld oscilloscope; 25MHz; LCD TFT 3,5"; Ch: 1; 250Msps; 12kpts UNI-T
Tootekood: UTD1025CL
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-07-10 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 11 tk | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
Üle 50,00 € (Tellimused kuni 1000 kgs) | Tasuta |
50,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 50,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
Handheld oscilloscope; 25MHz; LCD TFT 3,5"; Ch: 1; 250Msps; 12kpts UNI-T
Kasulik informatsioon
Tehnilised andmed
Tarnija toote kirjeldus
Handheld oscilloscope; 25MHz; LCD TFT 3,5"; Ch: 1; 250Msps; 12kpts
Kasulik informatsioon
Tarnija toote parameetrid
Product code
UTD1025CL
Brand
UNI-T
Supplier's product code
UTD1025CL
Product ID
U-371718
AC current measuring range
4mA
AC voltage measuring accuracy
±(1.2% + 5 digit)
AC voltage measuring range
400V
Band
25MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 7,4V 3600mAh x1
Capacitance measuring accuracy
±(3%+ 5 digit)
Capacitance measuring range
100µF
DC current measuring range
40mA
DC voltage measuring accuracy
±(1.2% + 5 digit)
DC voltage measuring range
400V
Dimensions
199x118x49mm
Display parameters
(3999)
Display resolution
320x240
Input sensitivity
5mV/div...20V/div
Interface
USB mini
Kind of display used
LCD TFT 3,5"
Manufacturer
UNI-T
Max. input voltage
400V
Measurement
AC voltage
Measuring instrument features
automatic measurement of many parameters
Memory record length
12kpts
Number of channels
1
Power supply
mains power supply
Resistance measuring accuracy
±(1.2%+5 digit)
Resistance measuring range
4kΩ
Rise time
≤14ns
Sampling
250Msps
Standard equipment
test leads
Test
diodes
Time base
10n...50s/div
Type of oscilloscope
handheld oscilloscope
Trigger
video signal
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
