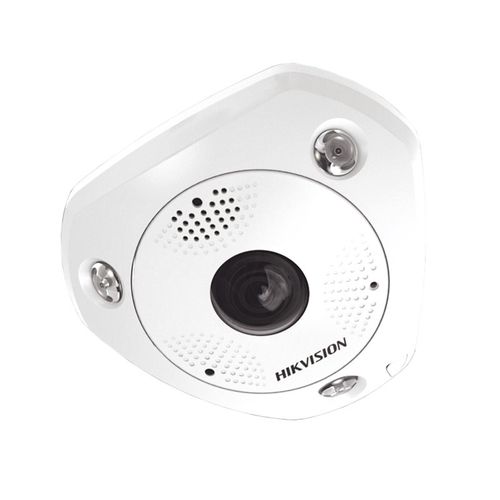

Hikvision fisheye DS-2CD63C5G0-IVS (D) F1.29
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
3,50 €
Kauba kirjeldus
Tehnilised andmed
Tarnija toote kirjeldus
- 12MP Fish-eye Network Camera
- 1/1.8” Progressive Scan CMOS
- Heat map
- Multi dewarping mode
- Up to 15 m IR range
- Built-in microphone and speaker
- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution4000 × 3000
- Min. Illumination
Color: 0.05 Lux @ (F2.2, AGC ON),
B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR Cut Filter
- Lens
- Focal Length & FOV1.29 mm, Horizontal FOV: 180°, vertical FOV: 180°
- Lens MountM12
- ApertureF2.2
- Illuminator
- Supplement Light Type3 IR LEDs, each LED is independently controlled
- Supplement Light RangeUp to 15 m
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 20 fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560)
60 Hz: 20 fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)
- Sub-Stream
50 Hz: 20 fps (720 × 720, 640 × 480)
60 Hz: 20 fps (720 × 720, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/ Main Profile /High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)
H.265 and H.264 support
- Region of Interest (ROI)4 fixed regions for main stream
- Fisheye Display
- Mount Type Support table, wall, and ceiling mounting
- Decoding ModeSupport hardware decoding and software decoding
- Display Mode
18 display modes in total
Software decoding:
Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder
Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ
Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder
Hardware decoding:
Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-160 Kbps(MP2L2)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- User/HostUp to 32 users. 3 user levels, administrator, operator and user
- SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
- Network StorageMicroSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central
- Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC, defog, 3D DNR
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Interface
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Audio
2 built-in microphones, 1 built-in speaker, mono sound
-S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
- Alarm 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
- Reset Key
Yes
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflicted, illegal login, HDD full, HDD error)
- Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection
- Deep Learning Function
- People Counting
Counts people entering, exiting and passing by separately
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports target filtering by height
- Heat Map
A graphic description of visits (calculated by people number or by dwell time) in a configured area.
Two heap map report types are available, space heat map and time heat map line chart
- Intersection Analysis
Detects and analyze flow in an intersection-like scene, and generate reports
Support one intersection of up to 10 ways
- General
- Power
12 VDC±20%, 1 A, max. 12.5 W
-S model: two-core terminal block
Without –S model: Φ 5.5 × 2.1 mm coaxial power plug
PoE (802.3at, class 4, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W
- Dimension
Without –V model: 167.4 × 152.8 × 46.8 mm (6. 6" × 6\" × 1.8\")
With –V model: 167 × 152.8 × 55 mm (6. 6 × 6\" × 2.2\") "
- WeightApprox. 1400 g (3.09 lbs)
- Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
- General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Heater
Yes
- Approval
- ProtectionIP67, IK10
