Kauba kirjeldus

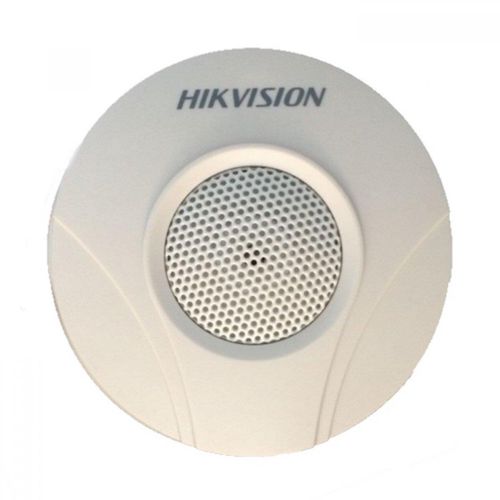

Hikvision microphone DS-2FP2020
Tehnilised andmed
Tarnija toote kirjeldus
- HI-FI Microphone
- 70 Square meters
- 12VDC
Pickup range | 70 sq.m |
Audio transmission distance | 3000m |
Sensitivity | -34dB |
Frequency response | 20Hz～20KHz |
Directivity characteristics | Omnidirectional |
SNR | 60dB（1m40 dB audio tone SPL）40dB(10m 40 dB audio tone SPL)1KHz at 1 Pa |
Dynamic Range | 70dB(1KHz at Max dB SPL) |
Maximum sound pressure | 100dB SPL（1KHz，THD 1%） |
Output impedance | 600 ohm unbalanced |
Output signal amplitude | 2.5Vpp/-25dB |
Microphones | Capacitor microphone diaphragm |
The signal processing circuit | ANC ambient noise cancellation technology |
Protective Circuit | 30KV Air contact ESD, lightning protection, reverse polarity protection |
Drive Capability | Built-in pre-amplifier circuit can directly drive headphones |
Connection Mode | 3 wires (Power, Audio out, GND) |
Transmission Cable | 3-core shielded cable 0.5mm² RVVP |
Supply Voltage | DC 12V (9V-15V) |
Supply Current | Max 25mA |
Working Temperature | -25℃～70℃ |
Installation Mode | Fixed Pedestal Mounting |
Color | White/Blue |
Shell Material | PVC |
External Size | Φ78mm×28mm |
Weight | 60g |
Tarnija toote parameetrid
Product code
YDS2FP2020
Category
Additional Equipme
Supplier's product code
YDS2FP2020
Product ID
U-2528176
Brand
Hikvision
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
