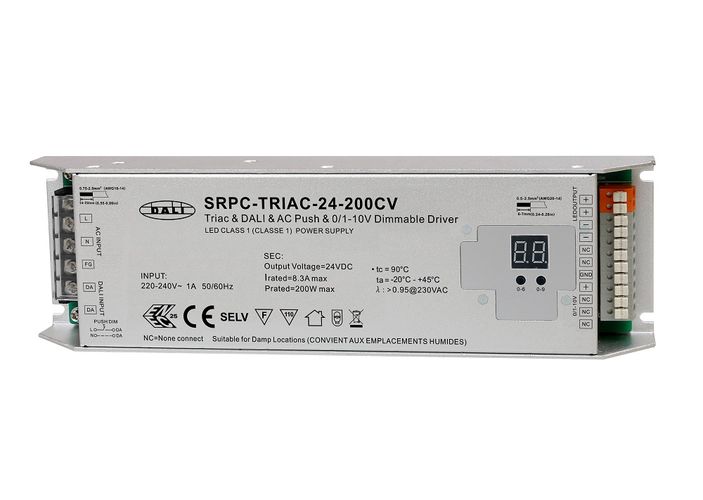

LED toiteplokk 220-240Vac - 24Vdc, 200W, TRIAC + DALI + Push-DIM + 1-10V, Sunricher
Toote kood: SRPC-TRIAC-24-200CV
Tarne LEMONA electronics kontorisse 1-5 tööpäeva
 >10 tk | Keskladu |
| 1 tk | Tallinna kontor |
Tarne kulleriga koju 1-5 tööpäeva
Tarne pakiautomaati 1-4 tööpäeva
Koos ostetud tooted
Kättetoimetamise tähtajad
Kontorist kättesaamine
Kontorist kättesaamine Tasuta
Tellimusi töödeldakse ja täidetakse tööpäevadel kell 8.30–17.00.
Kui teie tellimus on kogumiseks valmis, teavitame teid sellest SMS-i ja e-posti teel.
Kui teie tellimus on kogumiseks valmis, teavitame teid sellest SMS-i ja e-posti teel.
Kogus laos
| >10 tk | Keskladu |
| 1 tk | Tallinna kontor |
Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)
Kulleriga koju (1-4 tööpäeva, kui toode on laos olemas)
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)
Kohaletoimetamine DPD pakiautomaatidele (1-4 tööpäeva, kui toode on laos olemas)
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.
3,50 €
Kauba kirjeldus
Kaal
0.966 kg.
Bränd
- Dimmable LED driver with rectangle metal case
- With DALI/Push+Triac+0/1-10V dimming interfaces
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
- Built-in DALI-2 interface, DALI DT6 device
- 1 channel 24VDC constant voltage output
- Class 1 power supply, full isolated metal case
- Built-in two-stage active PFC function
- PF > 0.95, Efficiency > 93%
- Compatible with universal Triac dimmers

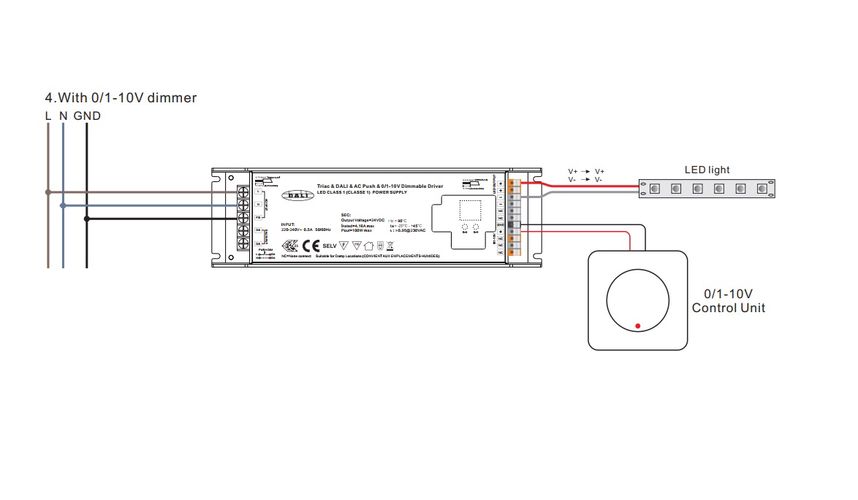

- Compatible with universal 0/1-10V dimmers
- PWM digital dimming output
- Compliant with Safety Extra Low Voltage standard
- Over load, over temperature protection
- IP20 rating, suitable for indoor LED lighting applications
TECHNICAL SPECIFICATIONS
| Output | LED channel | 1(with 2 groups of terminal connected in parallel) |
| DC voltage | 24V | |
| Max. current | 4,16A/group of terminal, group 1+group2=8,32A | |
| Voltage tolerance | ±1% | |
| Rated Power | 200W | |
| Input | Voltage Range | 200-240V AC |
| Frequency | 50/60Hz | |
| Power Factor (Typ.) | >0.95 | |
| Total harmonic distortion | THD ≤ 15% (@ full load / 230VAC) | |
| Efficiency (Typ.) | > 93% @ 230VAC | |
| Input Current | 1A @ 230VAC | |
| Inrush Current (Typ.) | COLD START Max. 65A @ 230VAC | |
| Leakage Current | < 0.5mA /230VAC | |
| Control | Dimming Interface | Triac+DALI (DALI consumption < 2mA)/Push+0/1-10V |
| Dimming Range | 1%-100% | |
| Dimming Method | Pulse Width Modulation | |
| Protection | Over Current | Yes, auto recovery after fault removed |
| Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp. | -25°C ~ +45°C |
| Max. Case Temp. | 90°C (Ta="45°C") | |
| Working Humidity | 10% ~ 95% RH non-condensing | |
| Storage Temp. &Humidity | -40°C ~ +80°C, 10% ~ 95% RH | |
| Safety&EMC | Safety Standards | EN61347-1, EN61347-2-13 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Isolation resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 183100H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
Kasulik informatsioon
Tehnilised andmed
Laokood
333801
Kaal
0.966 kg.
Sisendpinge alalisvool alates, V
24
Bränd
Ühenduse tüüp.
Sunricher laidinis
Praegune, A
8
Tüüp
Maitinimo šaltinis
Juhtvool, mA
Sunricher laidinis
NomNr
SRPC-TRIAC-24-200CV
Sisendpinge alalisvoolu pingele, V
24
