Kauba kirjeldus

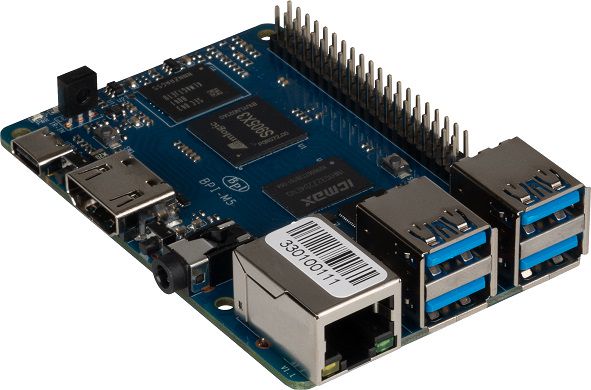

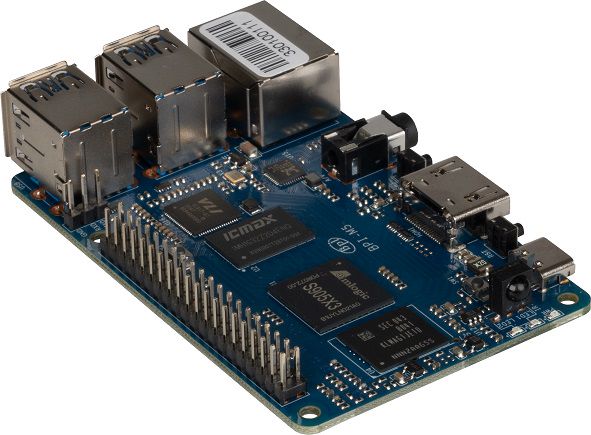

The banana PI M5 is a versatile all-rounder. It is suitable for Linux as well as for Android applications. Its GPIO interface is compatible with the Raspberry PI, which means that most of the expansion boards of Raspberry can also be used for this board. On the board are both an infrared receiver, as well as a reset and power button.The powerful Quad-Core 2 GHz processor withstands high requirements and thanks to the fast network interface up to 1 Gbit/s even large data volumes can be processed flexibly. Additional memoryThe integrated 16 GB eMMC flash memory, can be extended by a micro SD card with a size of up to 256 GB.

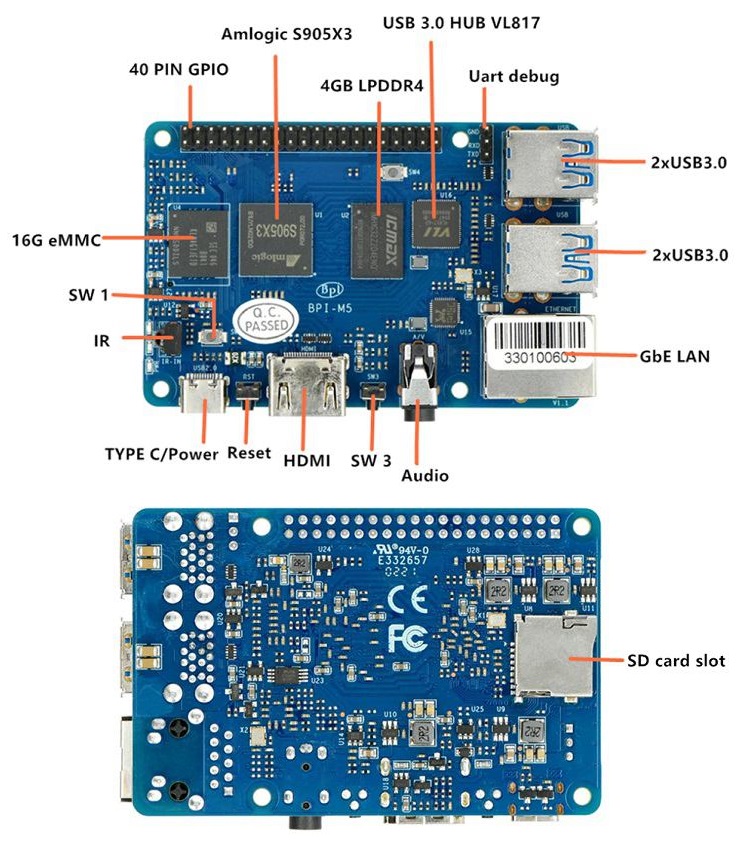

Hardware interface:
Technical data
OS | Android and Linux |
CPU | Amlogic S905X3 Quad-Core Cortex-A55 (2.0 GHz) |
GPU | Mali-G31 MP2 GPU with 4 x Execution Engines (650 Mhz) |
Memory | 4 GB LPDDR4 |
Storage | 16 GB eMMC flash, micro-SD Slot up to 256 GB |
Network | 10/100/1000 Mbit/s Ethernet |
Video-Output | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) |
Audio-Output | 3.5mm jack and 1 x HDMI digital output |
GPIO | 40 Pin Header: GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM |
Switches | Reset, Power and U-boot |
LED | Power Status and Activity status |
Power Source | 5 volt @3A via Micro USB (TYPE C) |
Weight | 48g |
Size | 92x60mm |
