Kauba kirjeldus

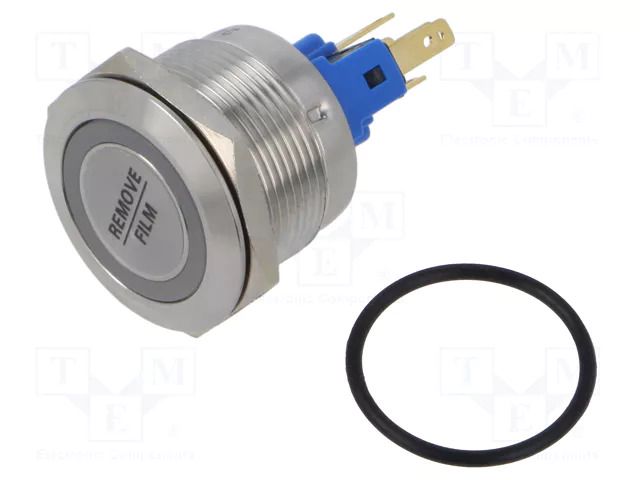

Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 2A/48VDC E-SWITCH
Kasulik informatsioon
Tehnilised andmed
Tarnija toote kirjeldus
Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 2A/48VDC
Kasulik informatsioon
Tarnija toote parameetrid
Product code
PV7F2Y0SS-335
Supplier's product code
PV7F2Y0SS-335
Product ID
U-2382756
Actuator colour
silver
Backlight colour
green
Body colour
silver
Body dimensions
Ø25x27.5mm
Body material
stainless steel
Button marking
blank
Button material
stainless steel
Button shape
flat
Contact plating
silver plated
Contacts configuration
SPST-NO + SPST-NC
DC contacts rating @R
2A / 48V DC
Electrical life
50000 cycles
Illumination
LED
Illumination voltage
24V
IP rating
IP65
Key stroke
2.2mm
Leads
for soldering
Leads dimensions
2.8x0.5mm
Manufacturer
E-SWITCH
Manufacturer series
PV7
Max. contact resistance
:50mΩ
Min. insulation resistance
1GΩ
Mounting
on panel
Mounting hole diameter
Ø22mm
Number of positions
2
Operating Force
4N
Operating temperature
-20...70°C
Panel thickness
max. 8mm
Stable positions number
1
Switching method
OFF-(ON)
Type of switch
vandal resistant
Brand
E-SWITCH
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
