Kauba kirjeldus

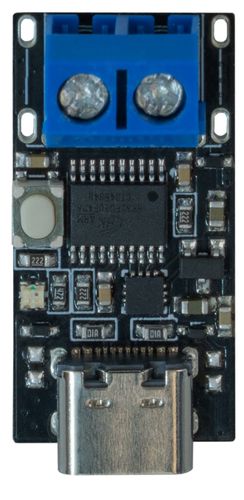

With this small module, you can trigger USB-PD protocols and thus, for example, charge your laptop via a PD-capable USB-C power supply. The output voltage can be adjusted in 5 steps (5 V, 9 V, 12 V, 15 V and 20 V) via the button integrated on the module. The currently selected voltage can be read from the color of the RGB LED integrated on the module. The module can be used flexibly and is highly integratable.
Connect your USB-PD trigger module to a USB-PD capable power supply using the USB-C connector. These modules provide you with different voltage modes, which are indicated by the LED. The mode can be changed by pressing the button.
SPECIFICATIONS
OUTPUT VOLTAGE: 5 V / 9 V / 12 V / 15 V / 20 V (adjustable via button)
SELECTED OUTPUT VOLTAGE: recognisable by the color of the RGB LED
SUPPLY VOLTAGE: (up to 20 V / 100 W) USB-PD-capable power supply (not included)
OUTPUT CURRENT: Max. 5 A
OUTPUT POWER: Max. 100 W
INPUT INTERFACE: USB-C
OUTPUT INTERFACE: Screw terminal
SPECIAL FEATURES: Adjustable output voltage
DIMENSIONS: 31.5 x 15 x 14 mm
