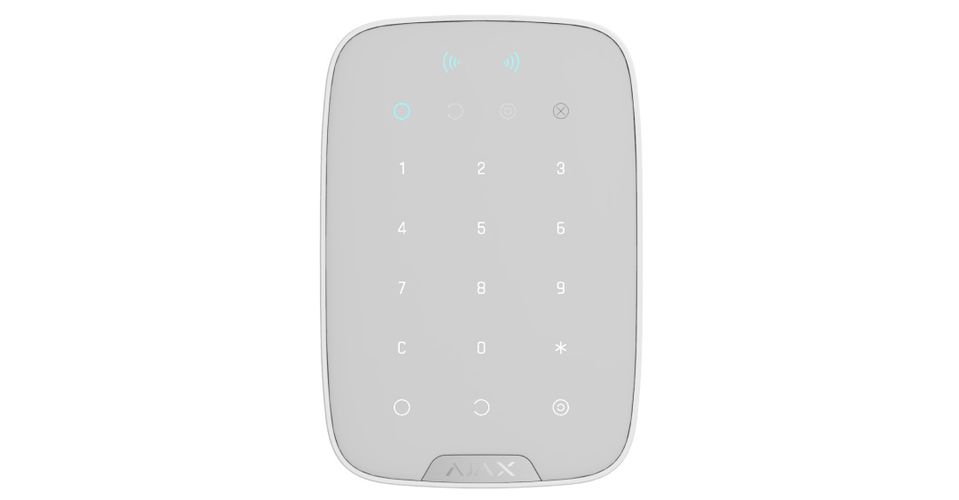

Wireless keypad Ajax Keypad Plus 38253.83.WH1 (white)
Tootekood: AJKEYPADPBBALT
Kättetoimetamise tähtajad
2025-06-13 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 25,00 € toimetatakse kohale tasuta.
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 25,00 € toimetatakse kohale tasuta.
3,50 €
Kauba kirjeldus
Wireless keypad Ajax Keypad Plus 38253.83.WH1 (white)
Tehnilised andmed
Tarnija toote kirjeldus
- Type: Wireless keypad
- Model: Ajax Keypad Plus
- Color: White
- Communication: Two-way
- Compatible with: Hub 2, Hub Plus, Hub 2 Plus
- Technology: DESFire / 13.56 MHz
- Product code: 38253.83.WH1
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
- Frequency bands866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz * 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
- Maximum effective radiated power (ERP)up to 20 mW, Automatic power control to reduce power consumption and radio interference.
- Radio signal modulationGFSK
- Radio communication rangeup to 5,600 ft, Between the keypad and a hub (or range extender) in an open space., Calculate the radio communication range at the facility
- Encrypted communicationAll stored and transmitted data are protected by block encryption with a dynamic key.
- Frequency hoppingTo prevent radio interference and jamming., Learn more
- Key features
- Sensor typecapacitive
- Malfunctions and security mode indicationWhen KeyPad Plus is active, it notifies with an LED indication of the security mode, problems with detectors, or communication loss with the hub.
- Functional buttonOperates in one of the modes., alarm, The system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system., mute fire alarm, Mutes interconnected fire detectors alarms., Learn more, off, The button is disabled.
- Controlcodes Pass cards Tag key fobs, The functionality of the cards/key fobs is the same, but they differ in design., Learn more about Pass, Learn more about Tag
- Access via DESFire®EV1, EV2, The technology is based on the ISO 14443 international standard and combines 128-bit encryption and copy protection.
- Access codesup to 200 personal codes, One code per each user. The number of personal access codes depends on the hub model ., 1 keypad code, One code per KeyPad Plus
- Duress codesup to 200 personal codes, One code per each user. The number of personal duress codes depends on the hub model ., 1 keypad code, One code per KeyPad Plus.
- Codes for unregistered peopleup to 99 personal codes, For people who are not registered in the system. The number of such codes depends on the hub model .
- Group security managementEnter the general keypad code and the group ID to manage group security.
- Sabotage protection
- Protection against code guessingKeyPad Plus locks for 3-180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute.The lock time is adjusted by PRO or user with admin rights in the Ajax app
- Tamper alarmNotifications on attempts to detach the keypad from the surface or remove it from the mounting panel., Learn more
- Protection against spoofingdevice authentication
- Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Power supply
- Batteries4 × AA, Pre-installed.
- TypeType C
- Calculated battery lifeup to 3.5 years
- Keypad’s operating voltage range2.25–3.3 V⎓
- Keypad’s nominal operating voltage3 V⎓
- Quiescent keypad’s current consumption at nominal voltage0.064 mA
- Maximum keypad’s current consumption at nominal voltage165 mA
- Full battery capacity12,000 mAh, Capacity of each battery is 3,000 mAh.
- Low battery voltage2.5 V⎓
- Low battery recovery voltage2.7 V⎓
- End-of-life battery voltage2.25 V⎓, Device is switched off.
- End-of-life battery capacity500 mAh, End-of-life capacity of each battery is 250 mAh.
- ManufacturerHuiderui, UL listed., Energizer
- Enclosure
- Dimensions6.50″ × 4.45″ × 0.79″
- Weight9.42 oz
- Operating temperature rangefrom 14 ℉ to 104 ℉, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
- Operating humidityup to 75%, Humidity of up to 93% is certified according to UL/ULC standards.
Tarnija toote parameetrid
Product code
AJKEYPADPBBALT
Category
AJAX
Brand
AJAX
Supplier's product code
AJKEYPADPBBALT
Product ID
U-4625750
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
