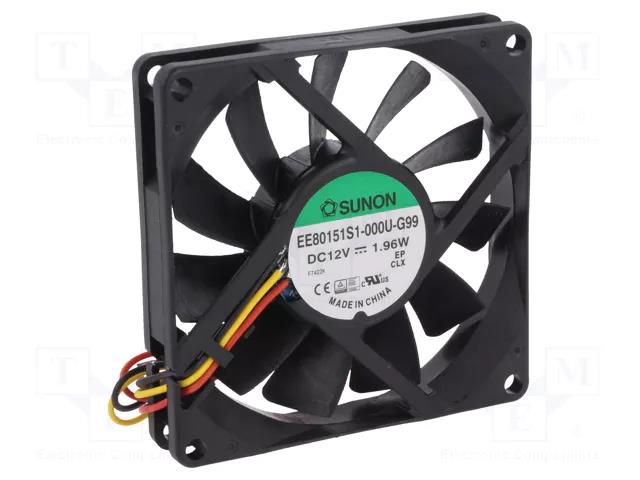

Fan: DC; axial; 12VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; slide; 24AWG SUNON
Tootekood: EE80151S1-G99
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 25,00 € toimetatakse kohale tasuta.
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 25,00 € toimetatakse kohale tasuta.
3,50
Kauba kirjeldus
Fan: DC; axial; 12VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; slide; 24AWG SUNON
Kasulik informatsioon
Tehnilised andmed
Tarnija toote kirjeldus
Fan: DC; axial; 12VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; slide; 24AWG
Kasulik informatsioon
Tarnija toote parameetrid
Product code
EE80151S1-G99
Supplier's product code
EE80151S1-G99
Product ID
U-176637
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
0.163A
Enclosure material
thermoplastic
Fan dimensions
80x80x15mm
Fan efficiency
62.86m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
slide
Kind of fan
axial
Lead length
0.3m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
34.7dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.96W
Rotational rate/speed
3000 (±10%)rpm
Signal output
F type
Static pressure
3.55mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
